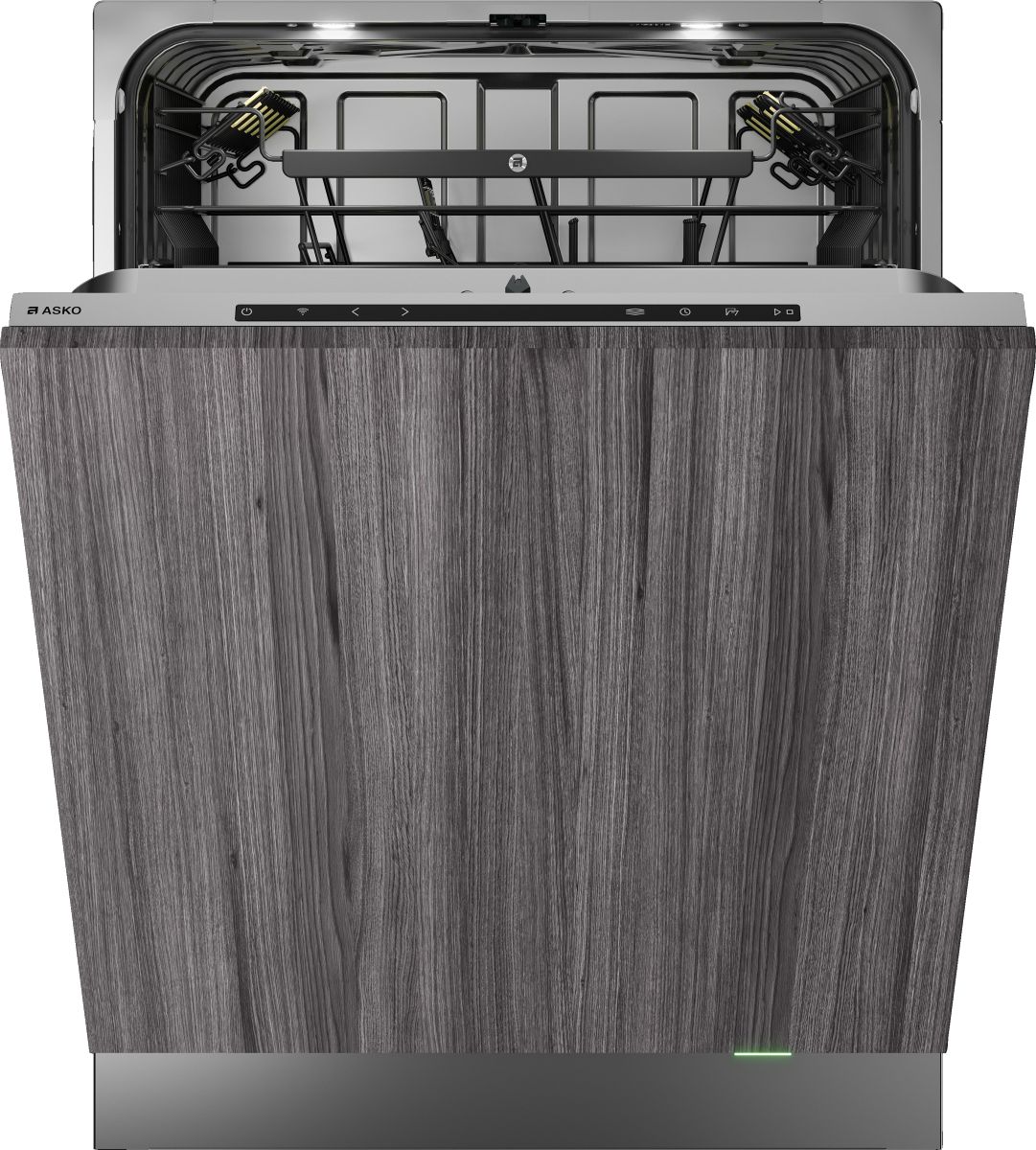

DFI746MU
DFI746MU DFI746MU DFI746MU DFI746MU

DFI746MU

Drying system: Turbo Combi Drying™
Product line: Style

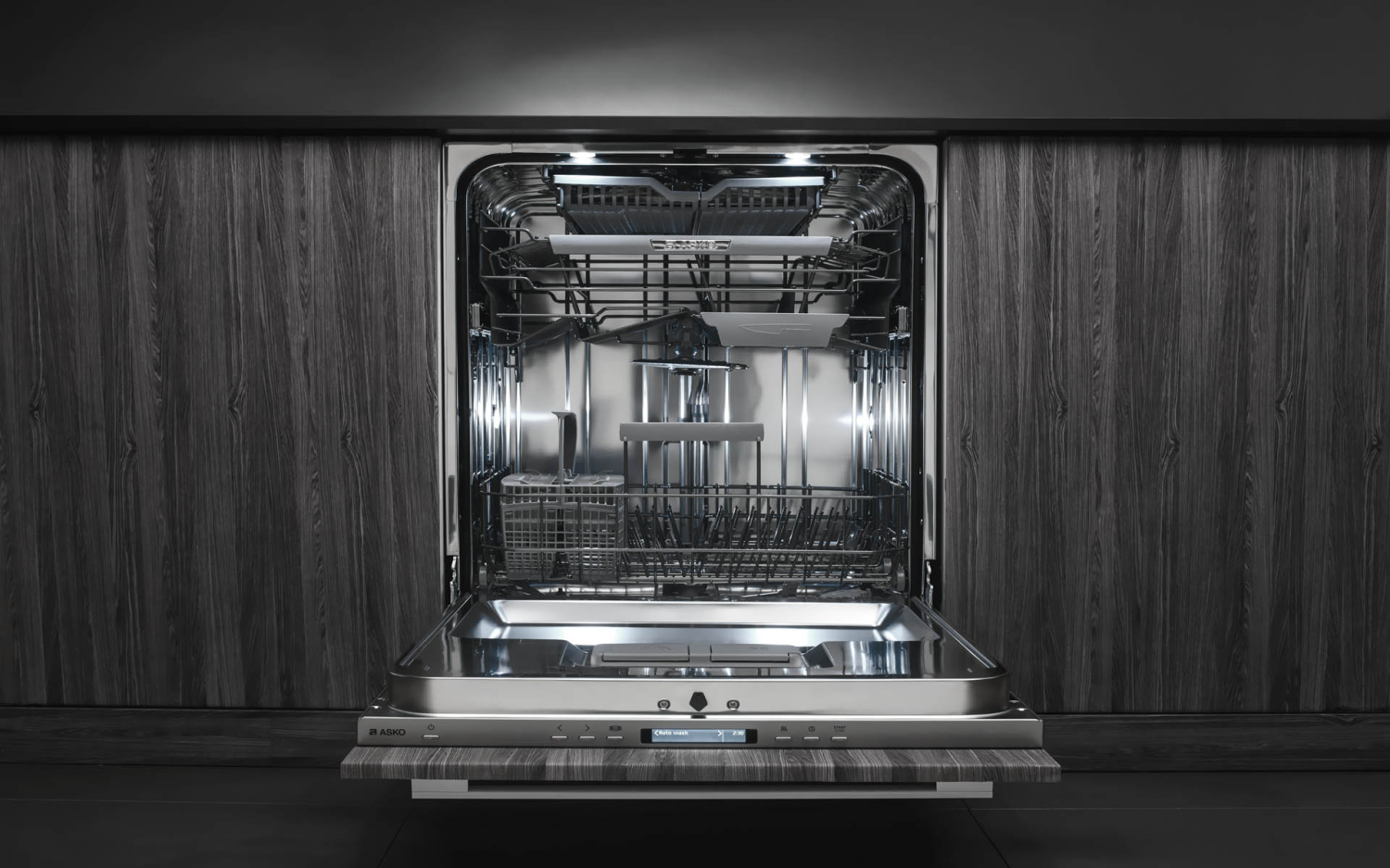

Installation: Fully integrated
Size: XL, 820 mm
Number of baskets: 3
Number of place settings (label): 14 place settings
Push to open: Yes
Automatic dosing system for dishwasher detergent gel: Yes
Upper basket type: Exclusive - Basket wiring in steel, all pin rows foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items.
Middle basket: Removable rack for large utensils; Removable rack for bowls, cups and glasses; Handle; Middle basket connection fitted with non-return valve; Perfect ergonomy with guide rails with ball bearings; Removable rack for large utensils - 2pcs
Lower basket type: Exclusive - Basket wiring in steel, all pin rows foldable, sliding tines in rear right, removable cutlery basket and vase/bottle holder for cleaning vases/baby bottles.
Sliding tines for easy adaptation to stone ware etc.: Yes
Handle with stainless steel logotype: Handle with Stainless steel logotype
Cutlery basket: Removable cutlery basket for easy loading and unloading

Share

Twitter
Linkedin

Highlights

SCS - Super Cleaning System™
SCS - Super Cleaning System™
8 Steel™
8 Steel™
Connected
Connected
Turbo Combi Drying™ with sensor control
Turbo Combi Drying™ with sensor control
Auto Dose
Auto Dose
UV Cleanse
UV Cleanse
Aqua Safe™ system
Aqua Safe™ system
Flexiracks™
Flexiracks™
XL Dishwashers
XL Dishwashers
Crystal glass
Crystal glass
Light Lock™
Light Lock™
Vase/bottle holder
Vase/bottle holder
Status Light™
Status Light™
LED interior light
LED interior light
10 Spray™
10 Spray™
3 Level basket
3 Level basket
Foldable pin rows
Foldable pin rows
Telescopic rails
Telescopic rails
Removable middle rack
Removable middle rack
14 - Loading capacity
14 - Loading capacity
Knife holders
Knife holders
Focus points
Focus points
Adjustable power zones
Adjustable power zones
Push to open door
Push to open door
20 years
20 years
Quick Pro
Quick Pro
SCS - Super Cleaning System™
SCS - Super Cleaning System™

SCS - Super Cleaning System™

Our unique and improved Super Cleaning System (SCS) is an intelligent feature that will save you time, electricity, water and effort. With this patented cleaning system you don’t need to rinse your dishes before putting them into your dishwasher. SCS cleans the fine filter and all the interior surfaces after pre-wash, before running the main wash. This means that the wash starts with rinsed dishes, a clean machine, an empty filter and fresh, and clean water.

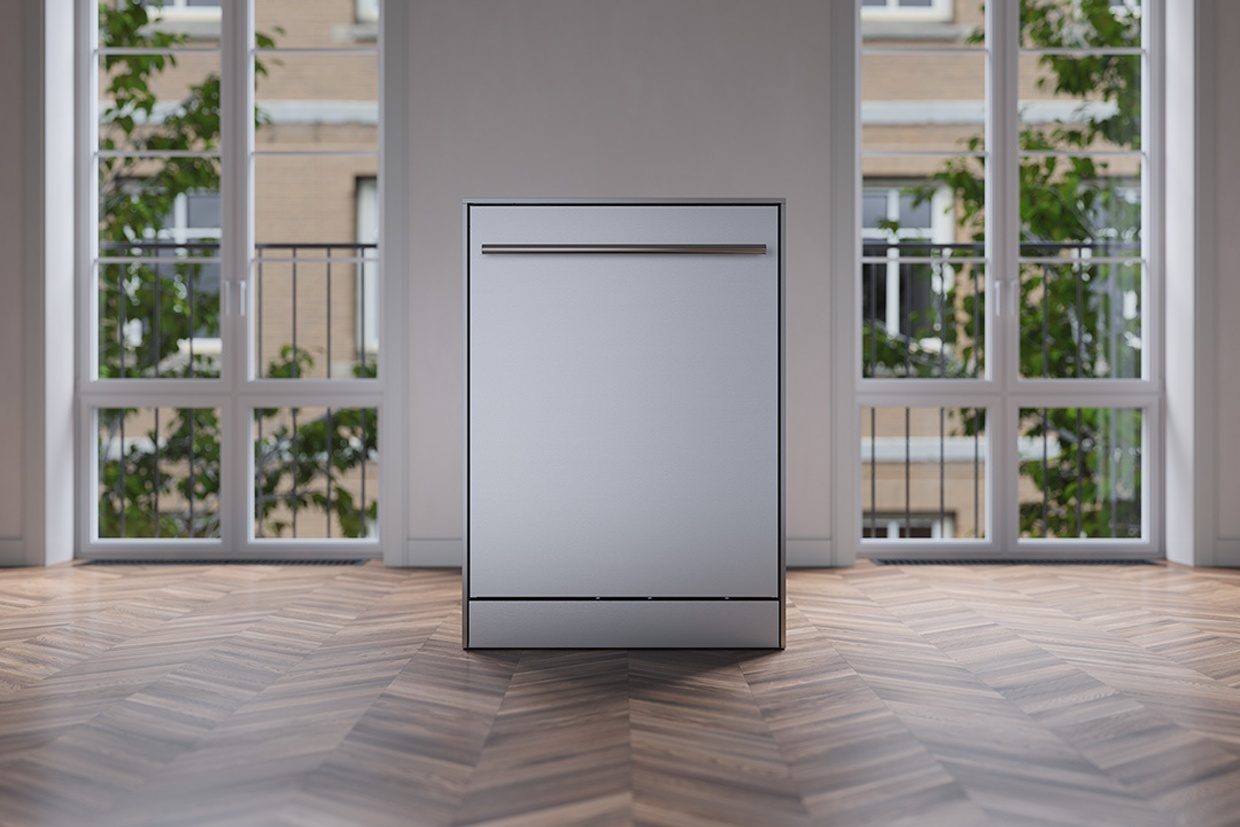

8 Steel™
8 Steel™

8 Steel™

No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
Connected
Connected
Connected

Connected

The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet. You can look up the online user manual, change settings, check the machine’s status and more. You can even start, stop and pause programs on the move. The app includes a step-by-step guide to help you find the best programs for you depending on what you’re washing and how you prefer to wash it.

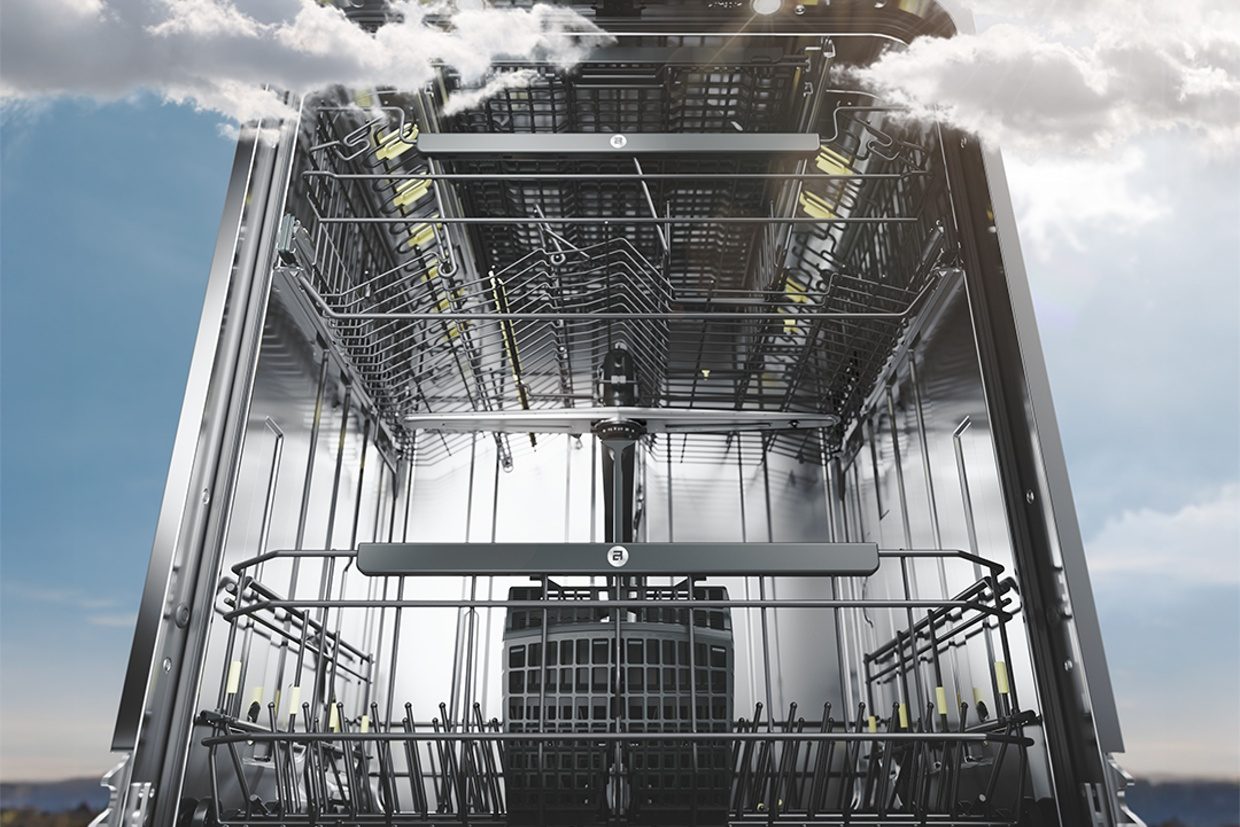

Turbo Combi Drying™ with sensor control
Turbo Combi Drying™ with sensor control
Turbo Combi Drying™ with sensor control

Turbo Combi Drying™ with sensor control

This is our most advanced drying method. It is based on the same principles as Turbo Combi Drying, but the automatic door opening is regulated by a sensor that measures the temperature in your kitchen. If the kitchen is colder than normal, the door will open at a later stage. If it is warmer, the door opens earlier. This means that energy for drying is used more efficiently.
Auto Dose
Auto Dose

Auto Dose

Through years of research, we have identified the exact amount of detergent needed to deliver consistently perfect cleaning results. That’s our job. Of course, we don’t expect you to spend time thinking about this. That’s why we designed Auto Dose. The auto dosing compartment in our dishwashers stores up to 30 days’ worth of detergent. This means you only need to fill it once a month. Just load your dishes, choose your program, and you’re ready to go. Hassle-free, as it should be.
UV Cleanse
UV Cleanse
UV Cleanse

UV Cleanse

When it comes to getting dishes and cutlery really clean, there are four important ingredients: temperature, chemistry, mechanical action and time. When developing our new DW60 series of dishwashers, we wanted to take cleanliness and hygiene to the highest level. So, we added a fifth and unexpected ingredient – light. UV light, to be exact. For our bodies, moderate exposure to UV light is a good source of vitamin D. It improves our mood and boosts our energy. But what about our dishes? Well, UV light is also proven to kill bacteria. This is why we decided to build our latest dishwashing innovation around it, enabling up to 99,99999 % bacterial elimination.
Aqua Safe™ system
Aqua Safe™ system
Aqua Safe™ system

Aqua Safe™ system

Aqua Safe™, is an advanced water safety system encompassing both a sturdy construction like PEX hose and seam-welded stainless container as well as smart systems as anti-block drain pump, Aqua Detect sensor and stand-by water protection. Few sealing points outside the container Seem-welded container in stainless steel Waterproof external base Exterior Float Aqua Detect™ Sensor Stand by water protection PEX inlet hose Maximum time for water intake Light and sound alarm Anti-block drain pump Safety Inlet Valve
Aqua Safe™ system
Flexiracks™
Flexiracks™

Flexiracks™

ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.
XL Dishwashers
XL Dishwashers
XL Dishwashers

XL Dishwashers

An internal loading height of up to 59 cm means that there is plenty of room for even the largest and most awkward kitchen objects. There’s also plenty of room for tall wine glasses, large platters and more.
Crystal glass
Crystal glass
Crystal glass

Crystal glass

The Crystal Glass program is designed together with world famous glassworks manufacturer Orrefors/Kosta Boda to take care of your finest glasses. Now, you can use your finest glasses whenever you like.
Light Lock™
Light Lock™
Light Lock™

Light Lock™

Light plastic cans and bowls are easily flipped over and filled with water. The LightLock™ smart fixation helps them to retain their position throughout the program.
Vase/bottle holder
Vase/bottle holder
Vase/bottle holder

Vase/bottle holder

Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.
Status Light™
Status Light™
Status Light™

Status Light™

ASKO’s new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.
LED interior light
LED interior light
LED interior light

LED interior light

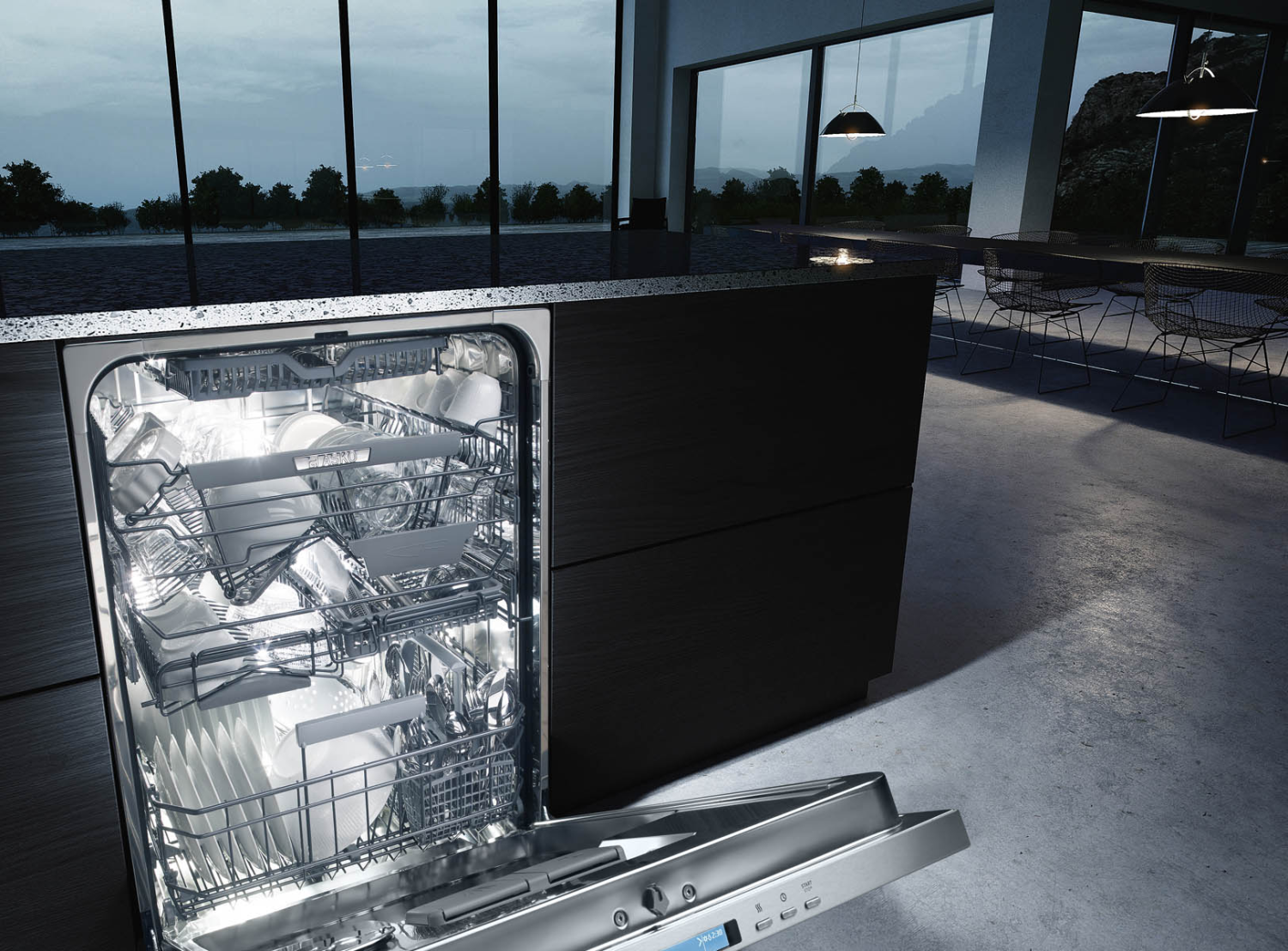

The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.
10 Spray™
10 Spray™
10 Spray™

10 Spray™

ASKO’s spray system consists of up to 10 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.

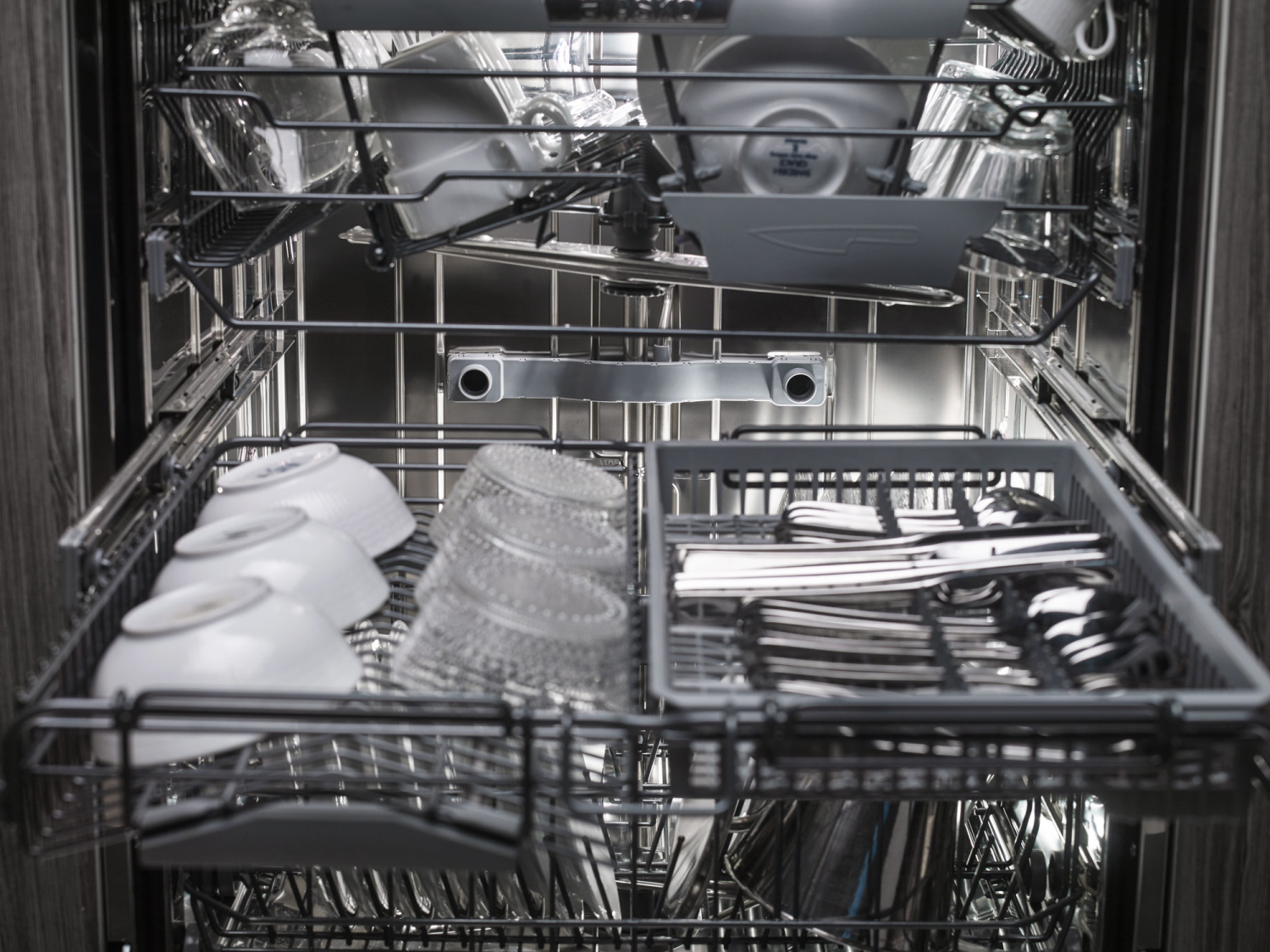

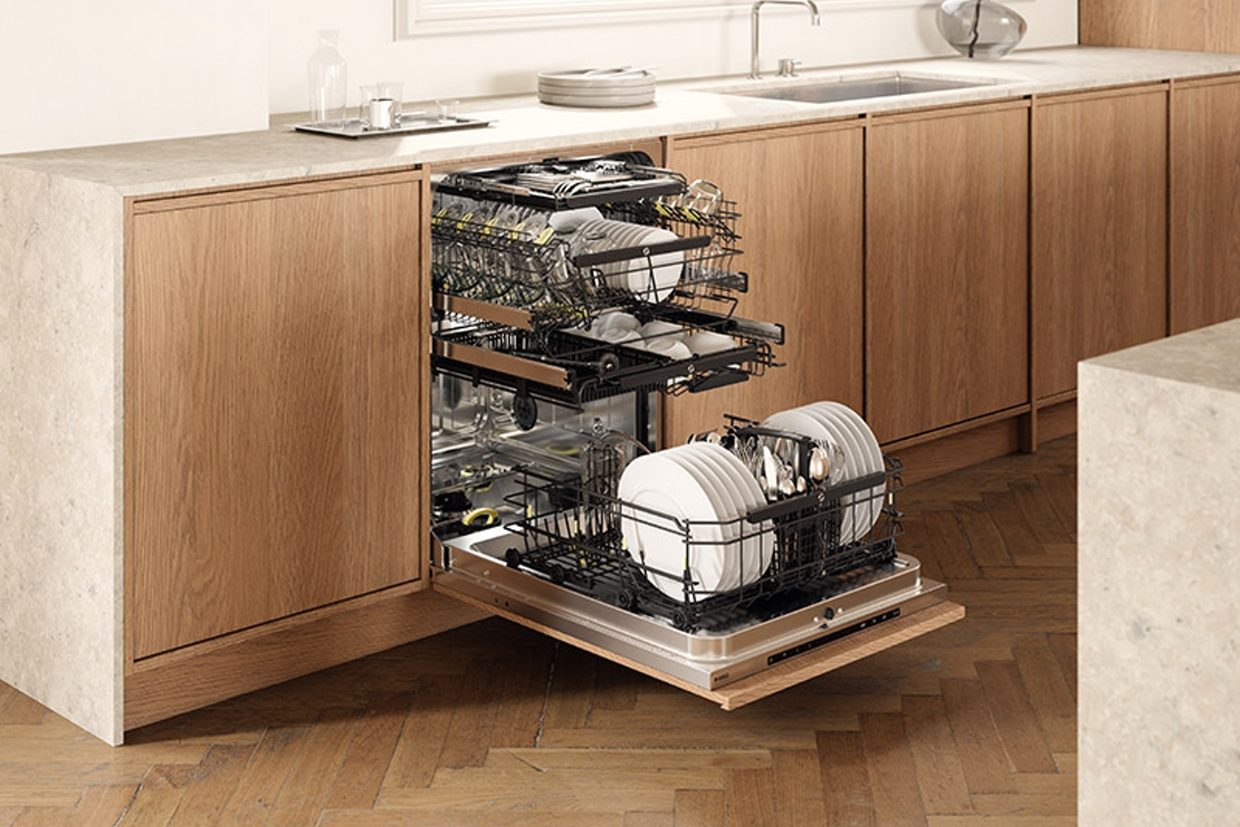

3 Level basket
3 Level basket
3 Level basket

3 Level basket

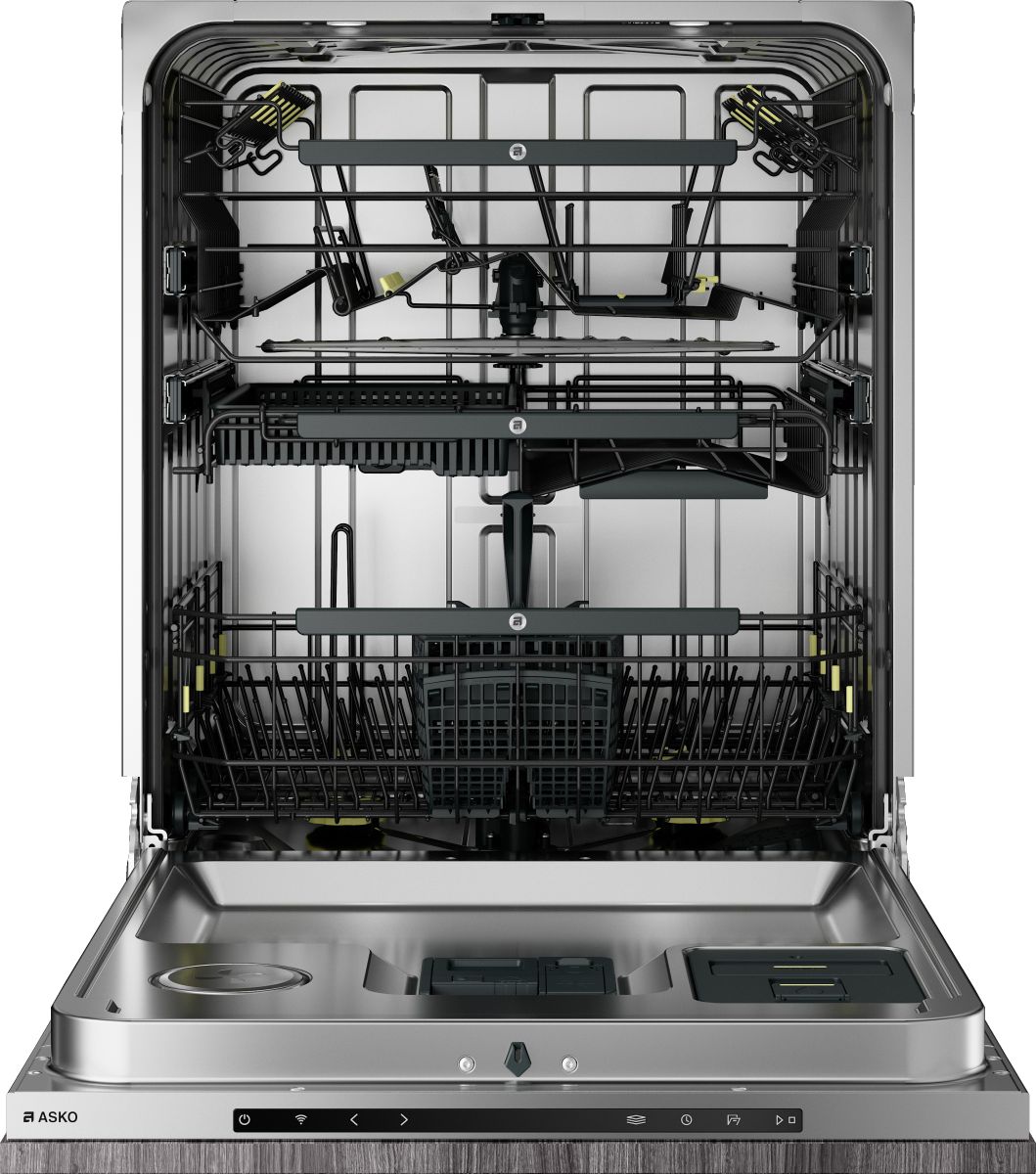

ASKO’s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery basket to meet your every need.
Foldable pin rows
Foldable pin rows
Foldable pin rows

Foldable pin rows

The foldable pin rows in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.
Telescopic rails
Telescopic rails
Telescopic rails

Telescopic rails

ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
Telescopic rails
Removable middle rack
Removable middle rack
Removable middle rack

Removable middle rack

The Twin Tubes™ spray zone makes the middle rack perfect for lightly soiled glasses etc. Easy to remove if you need more space. Spray pressure is retained if the basket is removed.
Removable middle rack
14 - Loading capacity
14 - Loading capacity
14 - Loading capacity

14 - Loading capacity

Inspired by everyday life. Our goal is that our products should make your everyday life simpler. That is why we have worked so hard through the years to develop the market’s largest and most flexible basket systems. This time, we have been especially careful to first find out what people really put in their dishwashers. We then translated our newly acquired knowledge to a range of unique, innovative and practical basket solutions.
Knife holders
Knife holders
Knife holders

Knife holders

Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Focus points
Focus points
Focus points

Focus points

Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine’s many clever features. These are highlighted with a colour that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place – where it doesn’t compete for space or attention – instead, it makes the room.
Adjustable power zones
Adjustable power zones
Adjustable power zones

Adjustable power zones

To make an already powerful cleaning system even more powerful, we have created two adjustable “power zones” with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There’s also a “bridging function” where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don’t need them simply switch them off.
Push to open door
Push to open door
Push to open door

Push to open door

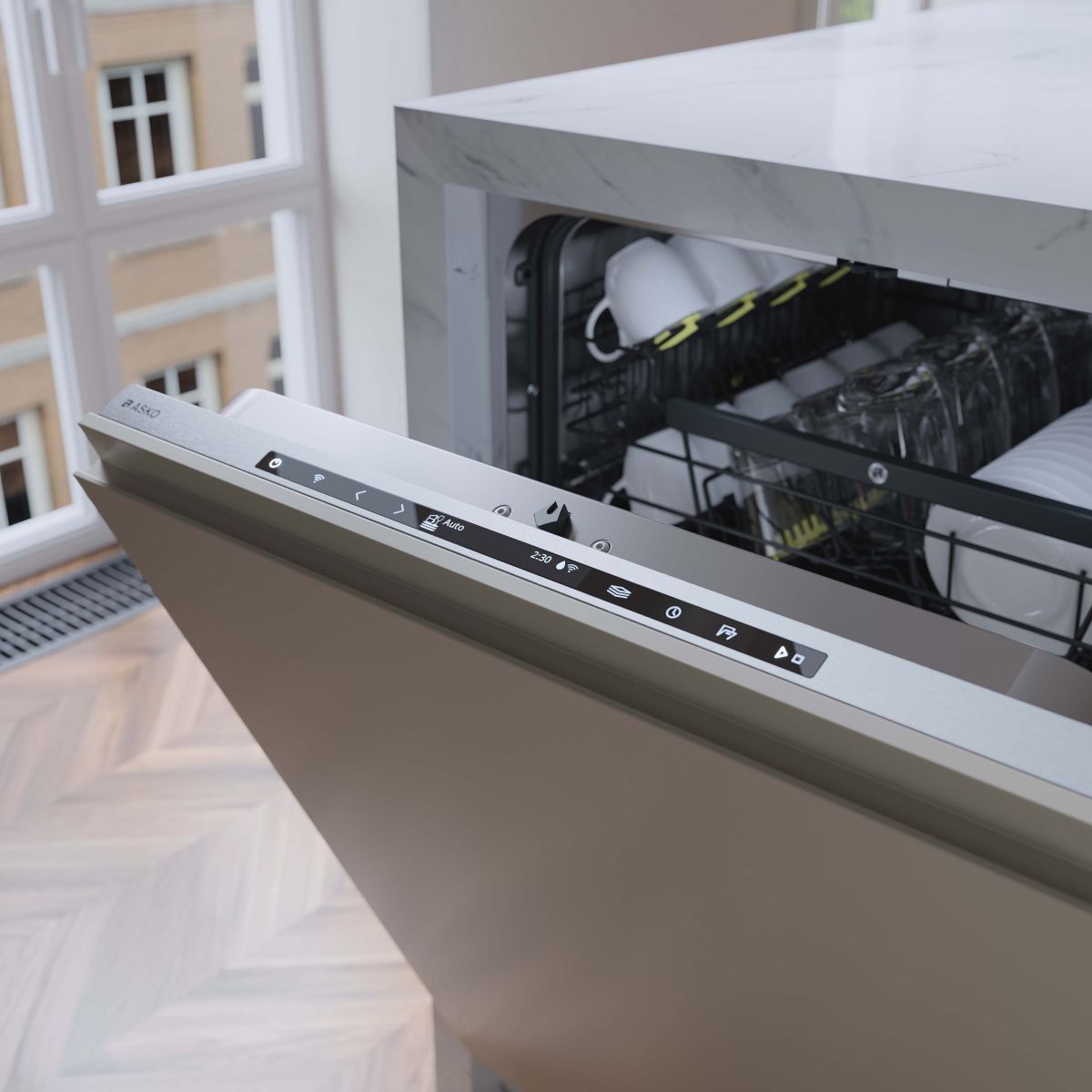

Our fully integrated dishwashers with push-to-open mechanism are ideal for open minimalistic kitchens, where the subtle handleless door contribute to a contemporary feel to your home. You simply give the door’s upper part a light push and the mechanism will then open the door for you. A function for your convenience that also offers the opportunity to integrate your dishwasher in a nice way in your kitchen.
20 years
20 years
20 years

20 years

Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better – for our customers and for the planet. Designed to make a difference. And built to be enjoyed for the next 20 years.
Quick Pro
Quick Pro
Quick Pro

Quick Pro

A fast and effective program using variable water pressure to boost cleaning performance and that quickly takes care of slightly dried leftovers. When combined with Speed mode, the program cycle is even shorter – as fast as 39 minutes.

Construction & Performance

Extra durable stainless steel container.
Aqua Detect™ - Instant recognition of any leakage in the motor compartment.
Stand-by water protecion - Leakage detection when machine is off.
Anti Block™ - Self cleaning drain pump.
8 Steel™ - Vital parts of the dishwasher made in stainless steel.
Hidden heater
No need to rinse the dishes thanks to Super Cleaning System™
Sensi Clean™ Sensor - measures dirtiness level
Automatic water-softener for better washing performance
Number of spray arms: 2
Number of spray zones: 10
Twin Tubes™ - separate spray zone for the middle basket
Turbo Combi Drying™
Automatic door opening
Sensor controlled door opening - Optimizes the drying process according to the room temperature
Cutlery Spray™ - Extra dishwashing power for the cutlery basket

Use & flexibility

Number of place settings (label): 14 place settings
Number of baskets: 3
Automatic dosing system for dishwasher detergent gel
Upper basket type: Exclusive - Basket wiring in steel, all pin rows foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items.
Upper basket system: Easy height adjustable with lever
China Guard - Protects fragile load from the rotating spray arm
Middle basket: Removable rack for large utensils; Removable rack for bowls, cups and glasses; Handle; Middle basket connection fitted with non-return valve; Perfect ergonomy with guide rails with ball bearings; Removable rack for large utensils - 2pcs
Lower basket type: Exclusive - Basket wiring in steel, all pin rows foldable, sliding tines in rear right, removable cutlery basket and vase/bottle holder for cleaning vases/baby bottles.
Vase and bottle holder for high narrow objects like baby bottles
Small distance between the basket threads - makes loading easy and prevents small items to fall through.
Removable cutlery basket for easy loading and unloading
2 led lights
Required inlet water pressure: 0,03-1 MPa

Interaction & Control

Possible to control via WiFi: Integrated

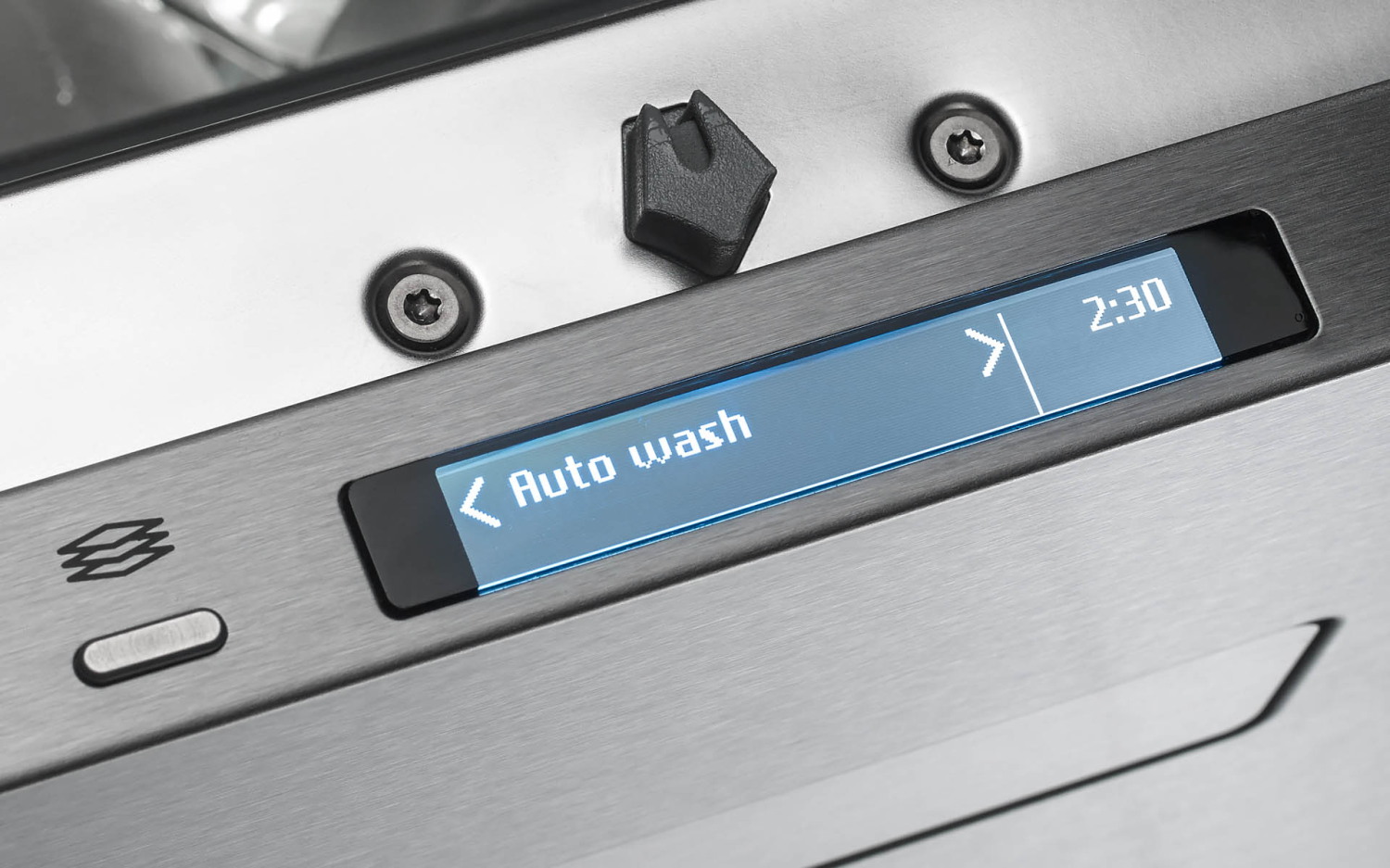

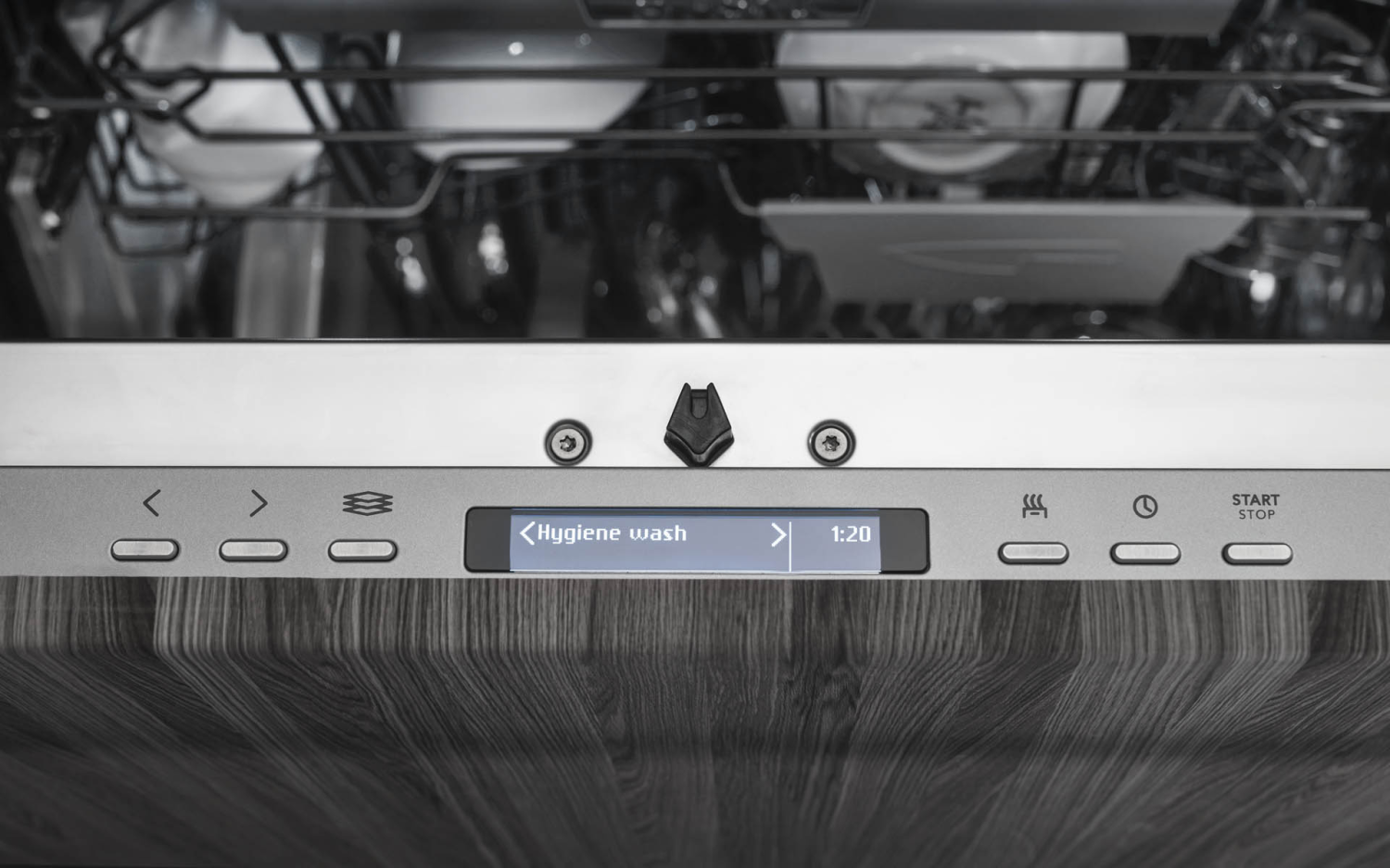

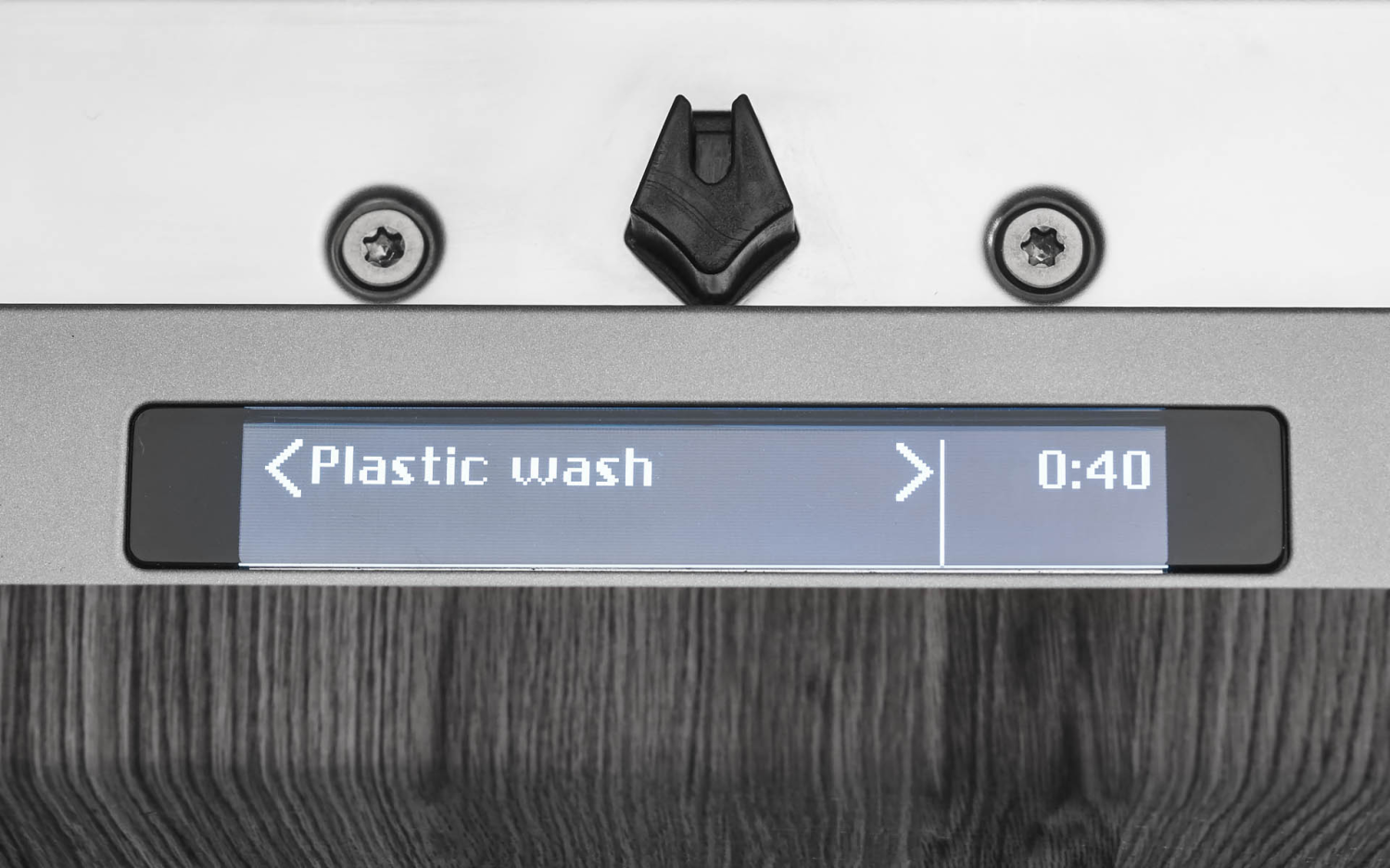

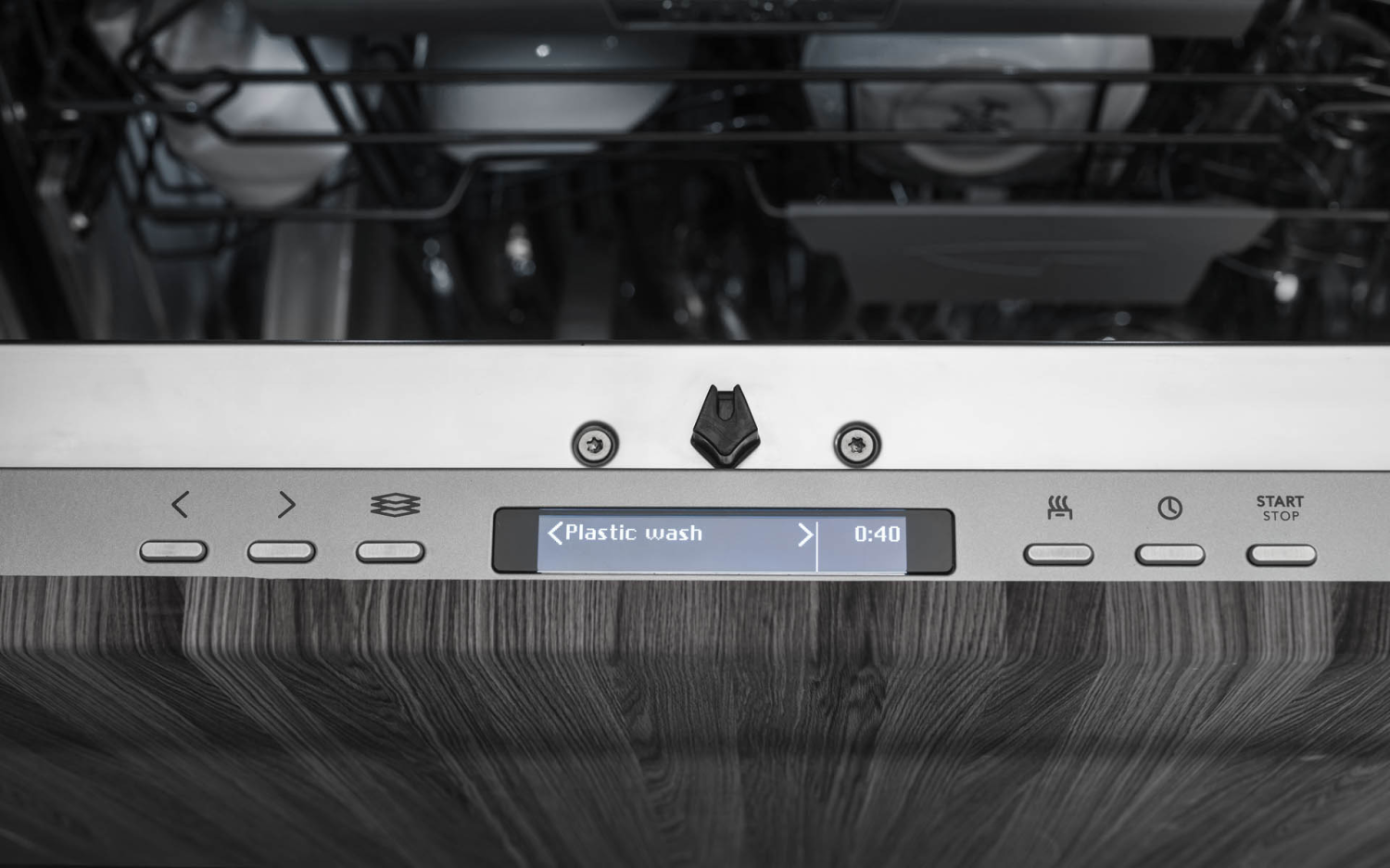

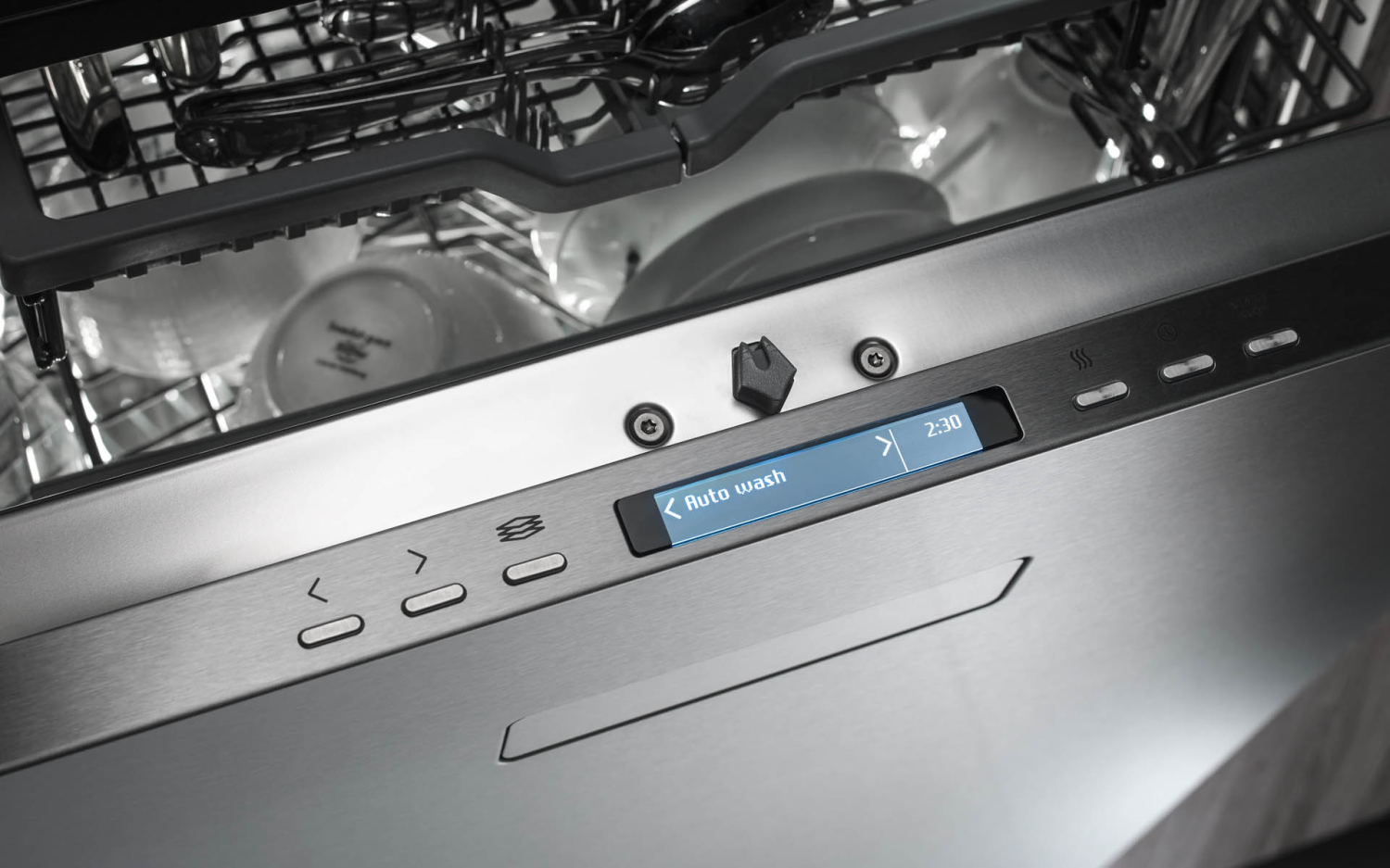

Type of display: TFT front display LCD top display
Ability to create own programmes: Memory programme
Number of programs: 15
Number of options: 10
Status Light™ - Visual indication of the dishwashing progress.
Time remaining indicator: Time remaining indicator
Wash end indication: Displayed with sound and light
Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off.
The water pressure is adapted depending on program, type of dishes and dirtiness level.
Available languages in control unit: CZ, DA, DE, EN, ES, EE, FI, FR, HR, IT, JP, LT, LV, NL, NO, PL, PT, RU, SK, SL, SV, UK

Programs

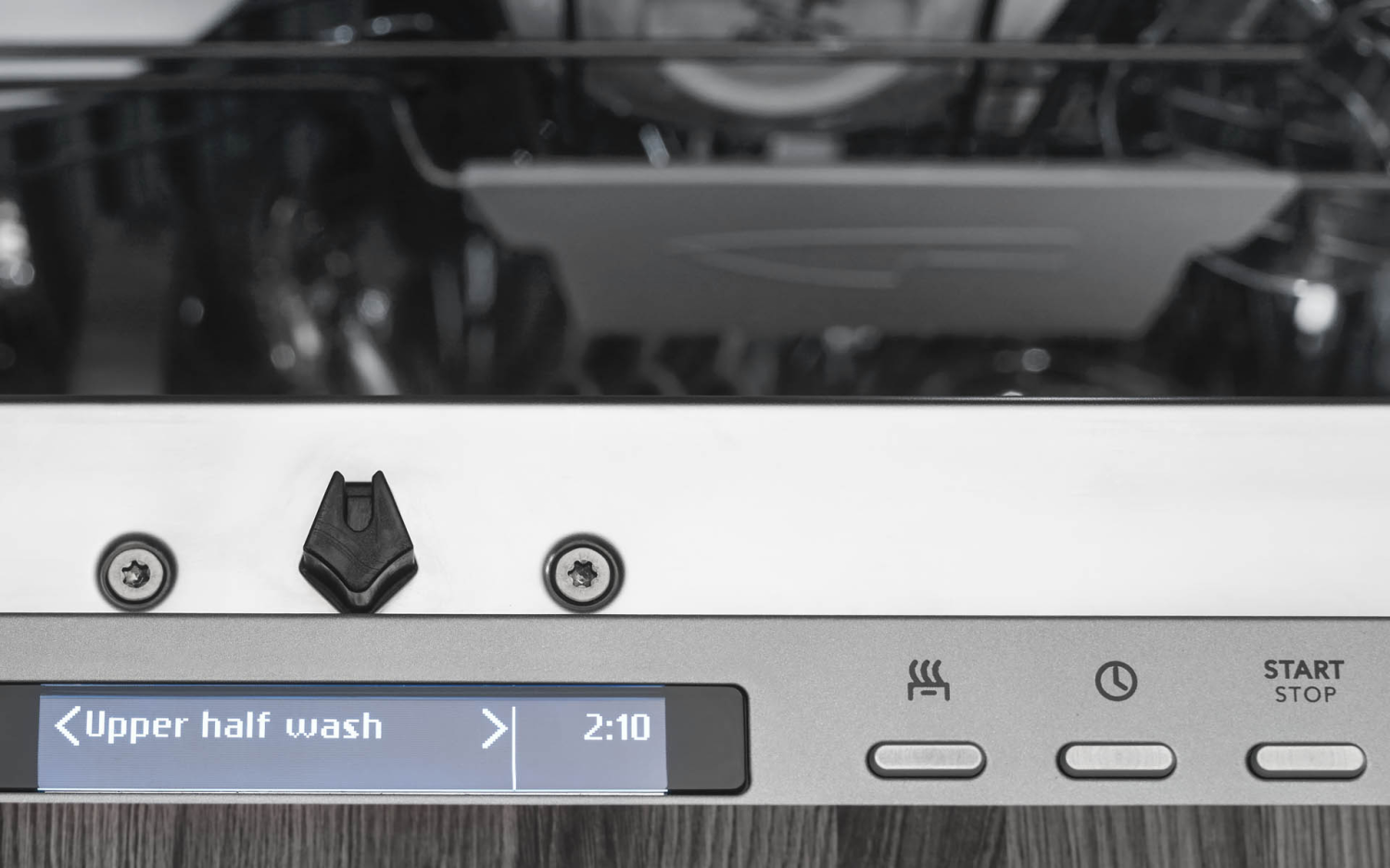

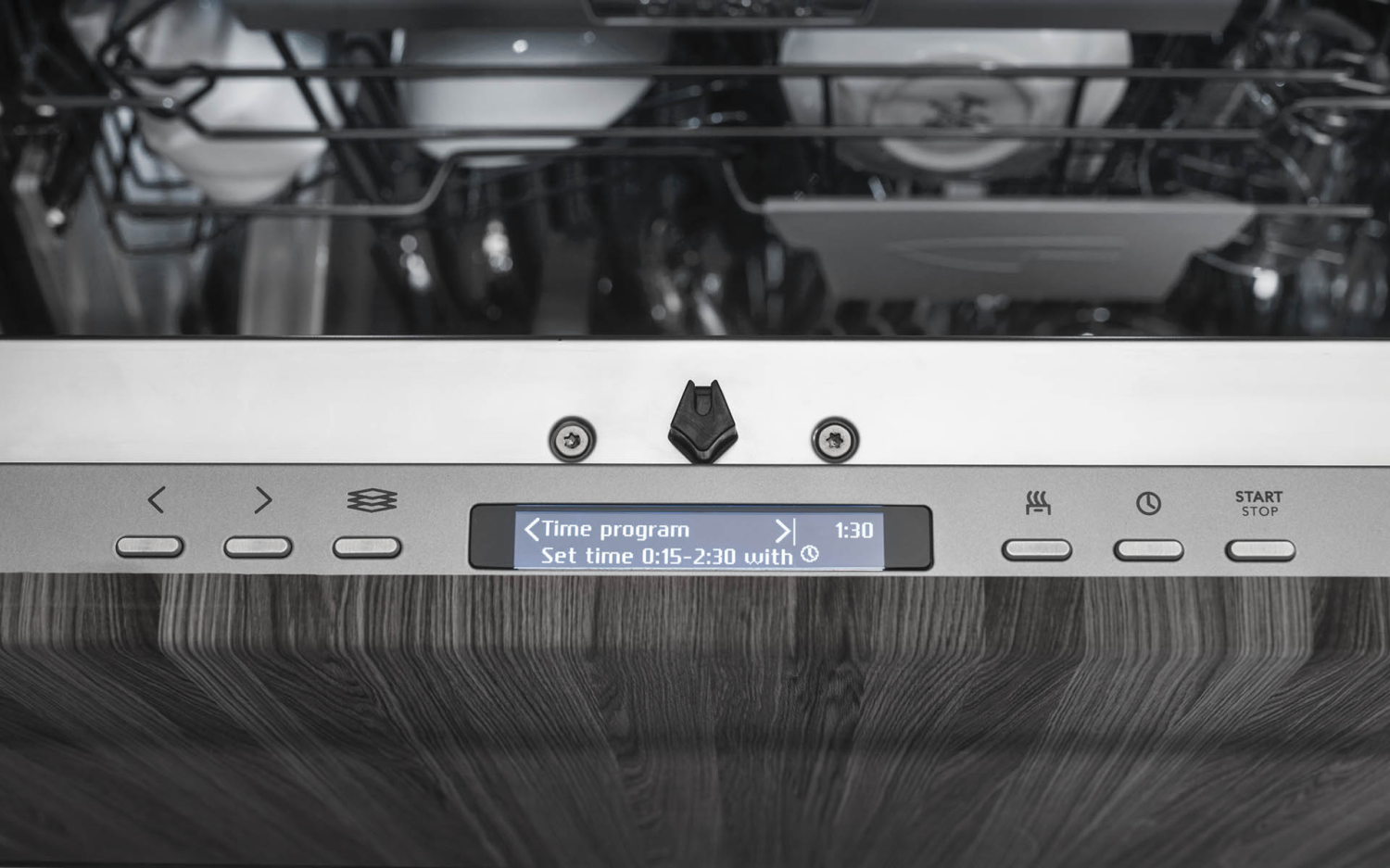

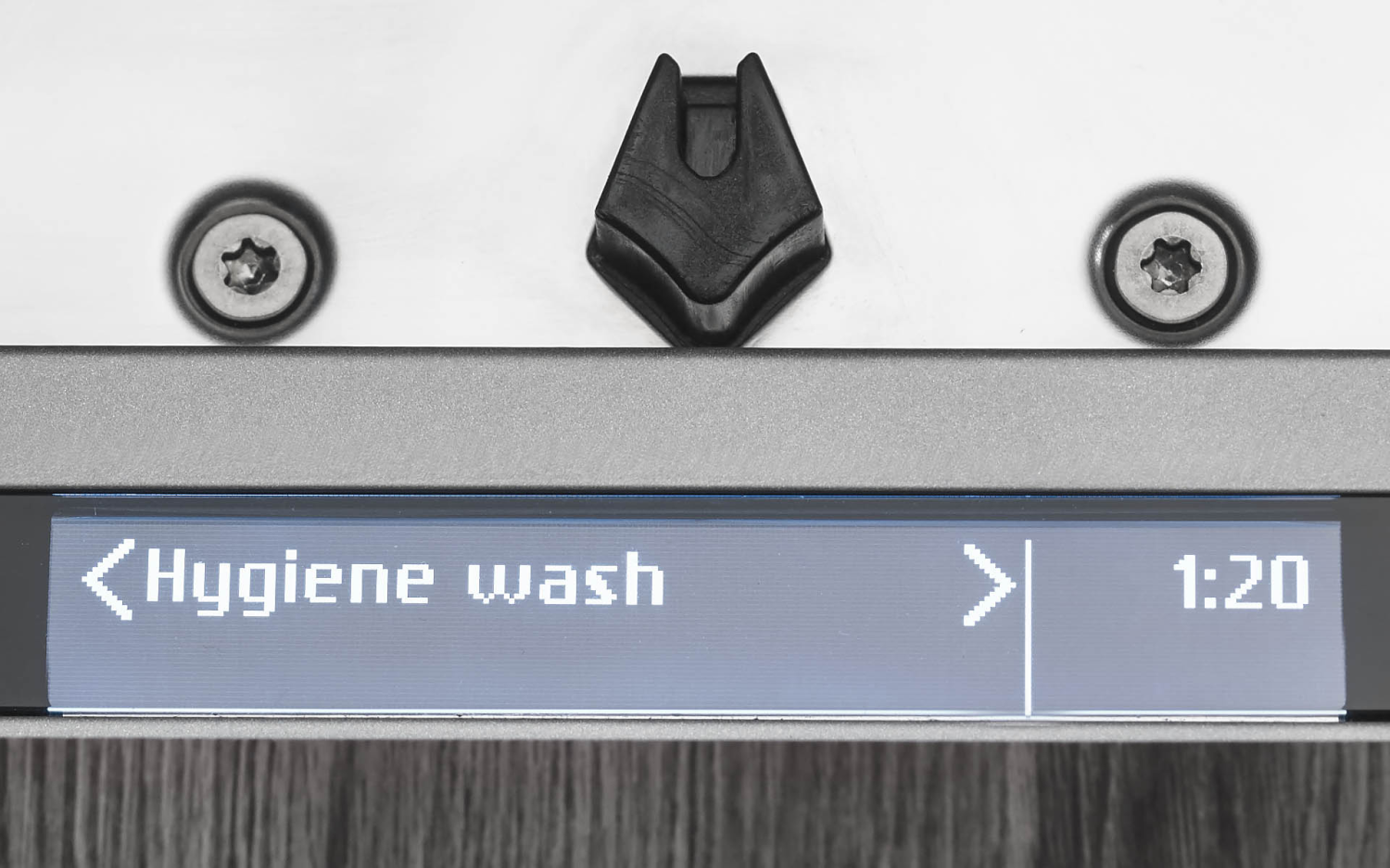

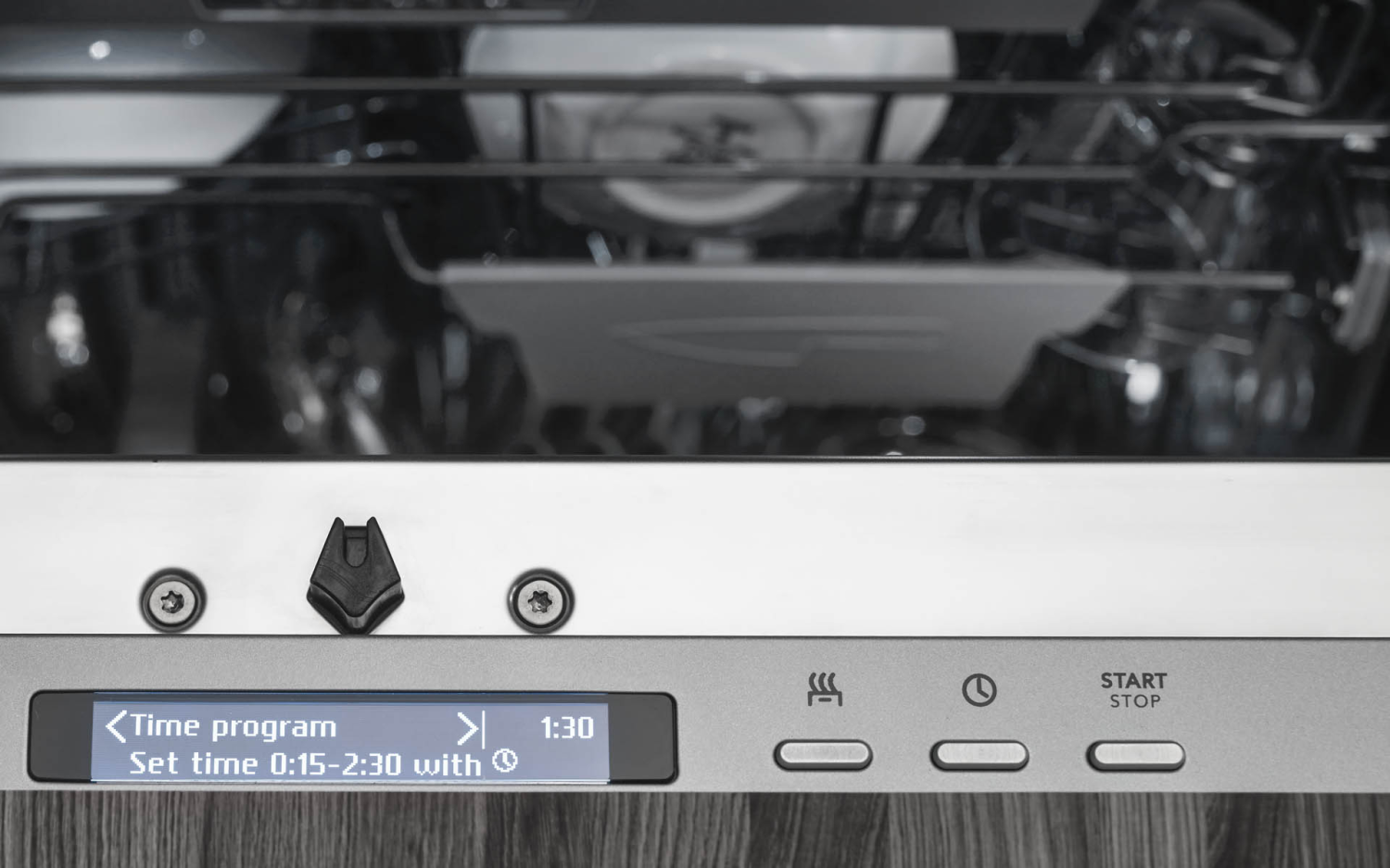

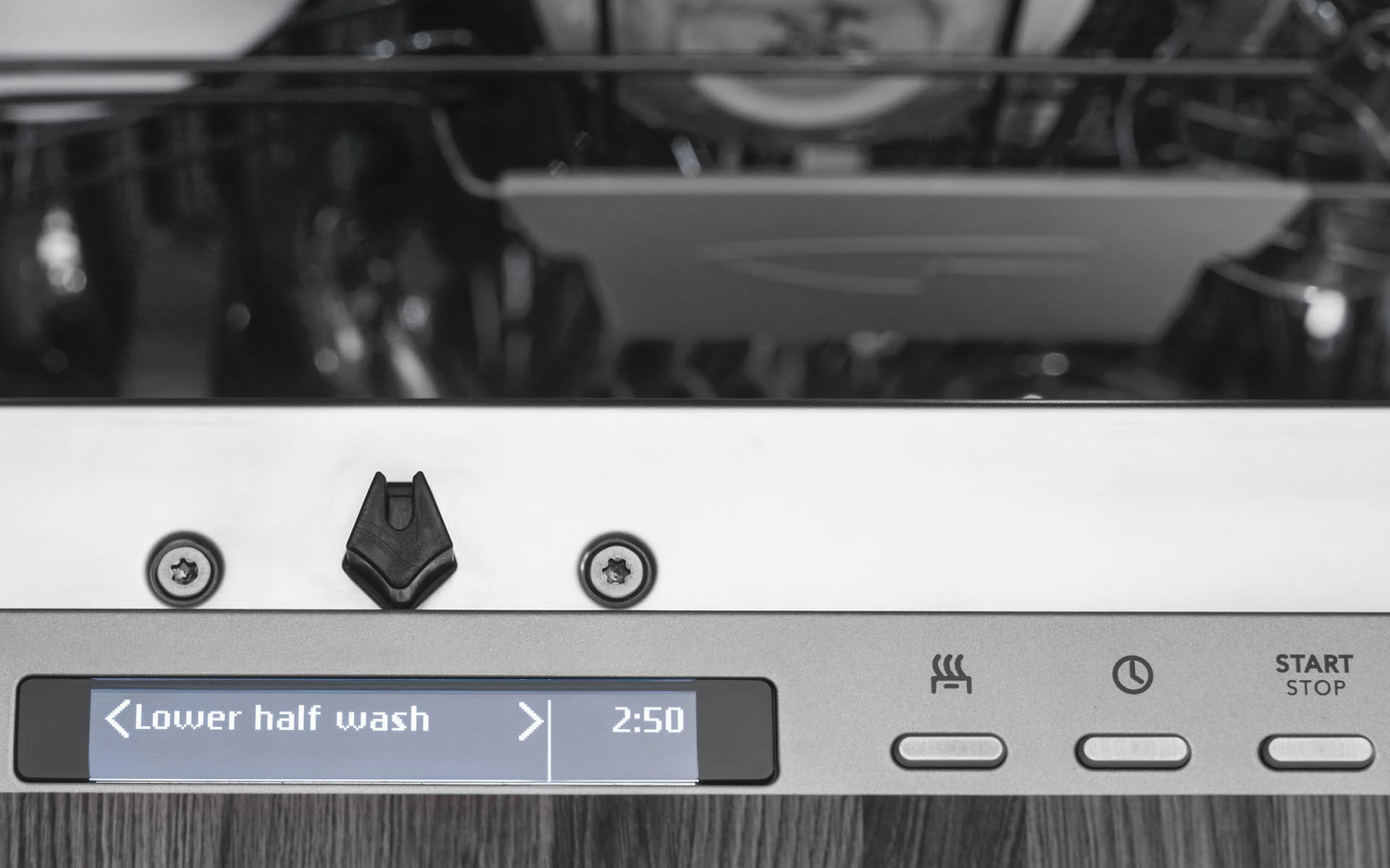

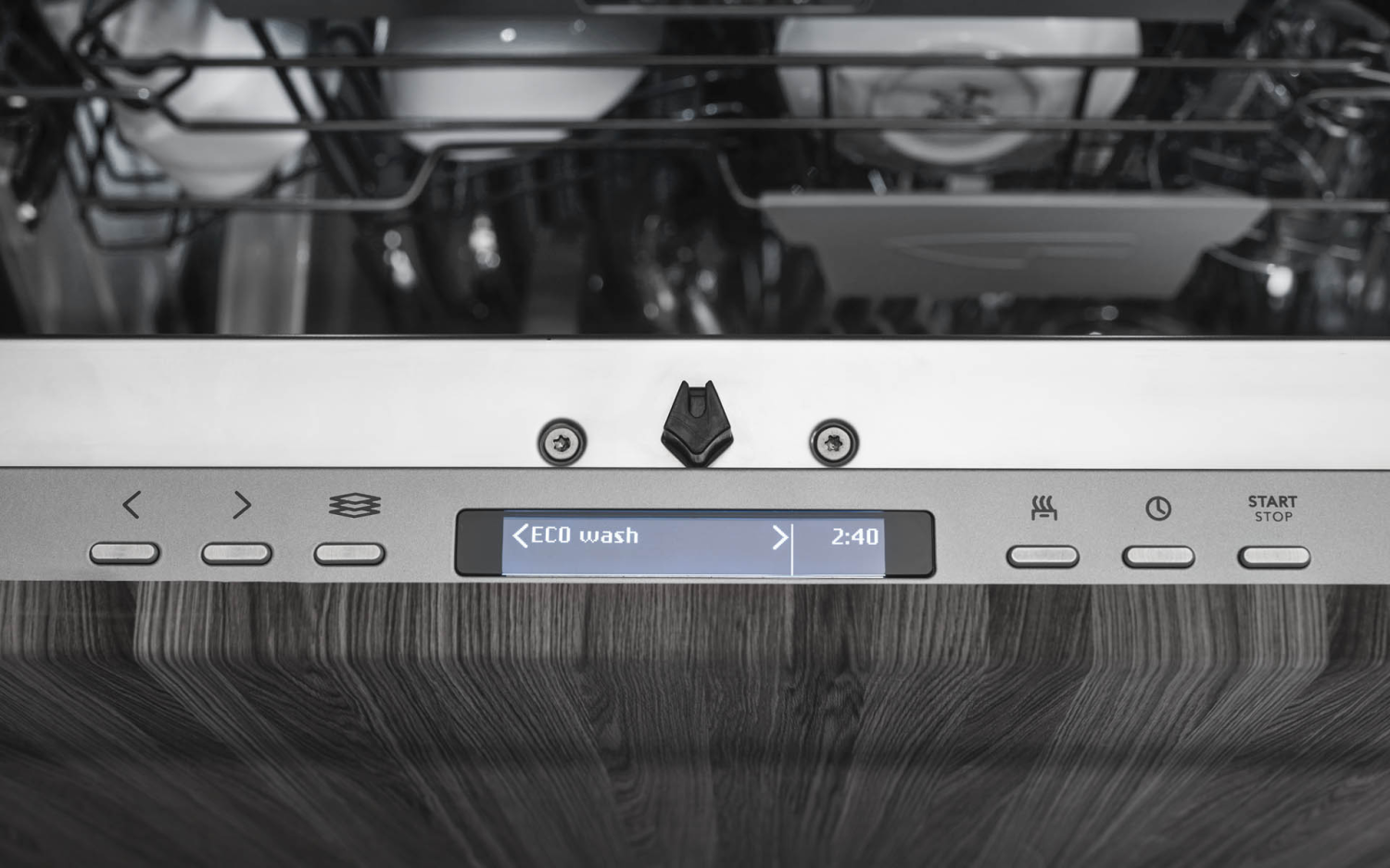

15 programmes: Auto; Intensive; Eco; Hygiene; Time program; Plastic; Rinse & hold; Universal; Upper half; Lower half; Crystal glass; Quick Pro; Self cleaning; Preheated; Anti odour
Delayed start: Possible to delay up to 24 hours
UV Cleanse mode - UV-light sanitation of the water in the final rinse
Green mode - Less energy and water is used. The program time is extended.
Speed mode - The program time is shortened. More energy is used.
Night mode - Lower noise level. The program time is extended.
Intensive mode - The dishwasher uses more heat and water. The program time is extended.
Super Rinse™ - Two extra rinses.

Design & integration

From the front adjustable door spring
From front adjustable rear foot
Velcro strips for easy mounting and adjustment of the separate custom door
Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation

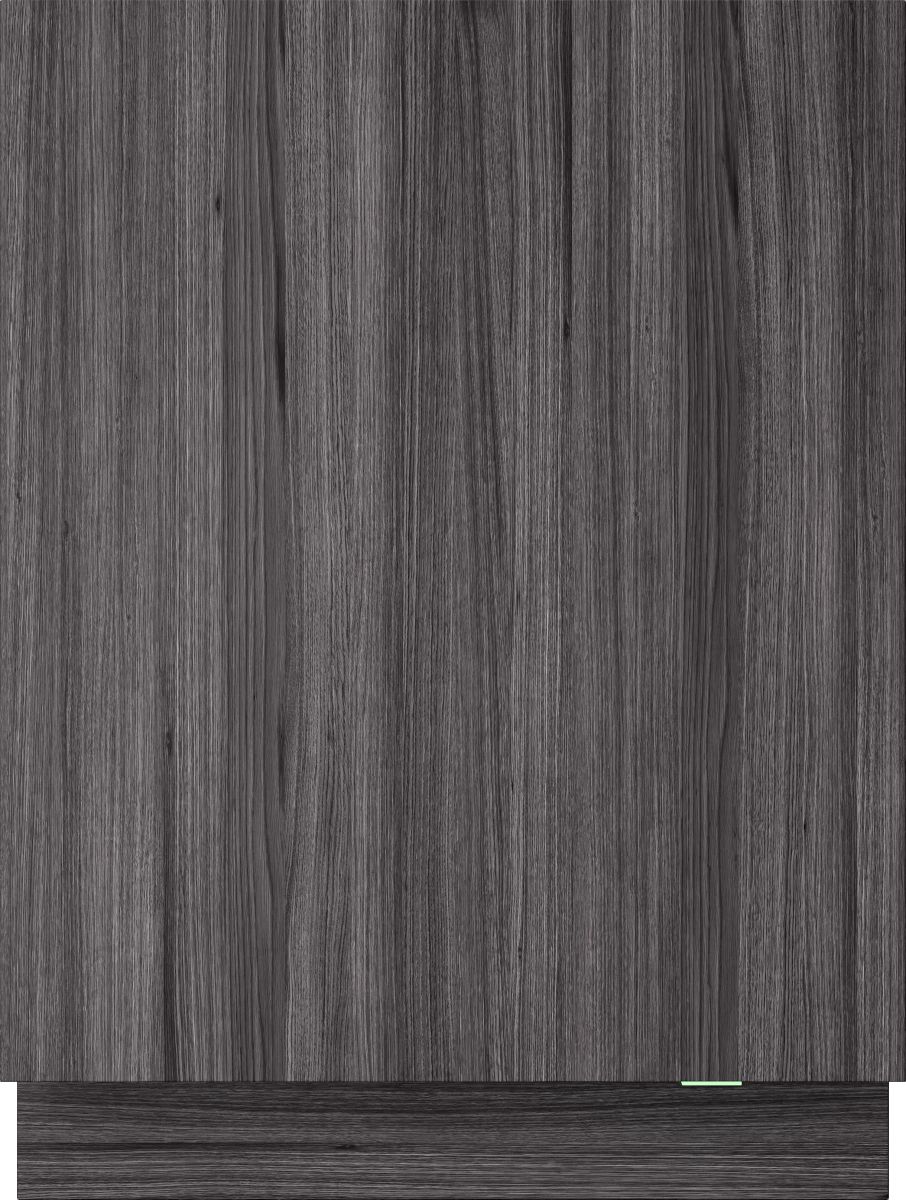

Custom door size 680-760mm
Min. niche width: 600 mm
Min. niche height: 820 mm
Depth (incl. wall spacing): 560 mm
Height setting: 53 mm

Safety & Maintenance

Aqua Safe™ system - Multiple safety systems preventing water damages.
Kid Safe™ - Lockable controls
Indication of low level of rinse-aid: Notification in display
Salt refill indicator: Salt refill indicator

Technical data

Water connection: Size 3/4" - Can be connected to hot or cold water
Max. temperature of incoming water: 70 °C
Noise level: 39 dB(A)re 1 pW
Duration of label wash cycle: 195 min
Estimated annual energy consumption: 184 kWh
Energy consumption - normal program: 0,64 kWh
Estimated annual water consumption: 2688 l
Water consumption - label program: 9,6 l
Energy consumption in off mode: 0,49 W
Energy consumption in standby mode: 0,49 W
Energy class: A+++
Plug type: Euro
Connected load: 1900 W
Number of phases: 1
Fuse: 10 amp
Frequency: 50 Hz
Required inlet water pressure: 0,03-1 MPa
Net weight: 49 kg

Dimensions

Width: 596 mm
Height: 819 mm
Depth: 554 mm
Maximum product height: 872 mm
Length electrical cord: 1730 mm
Depth with door open: 1191 mm

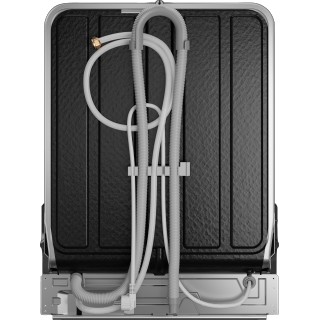

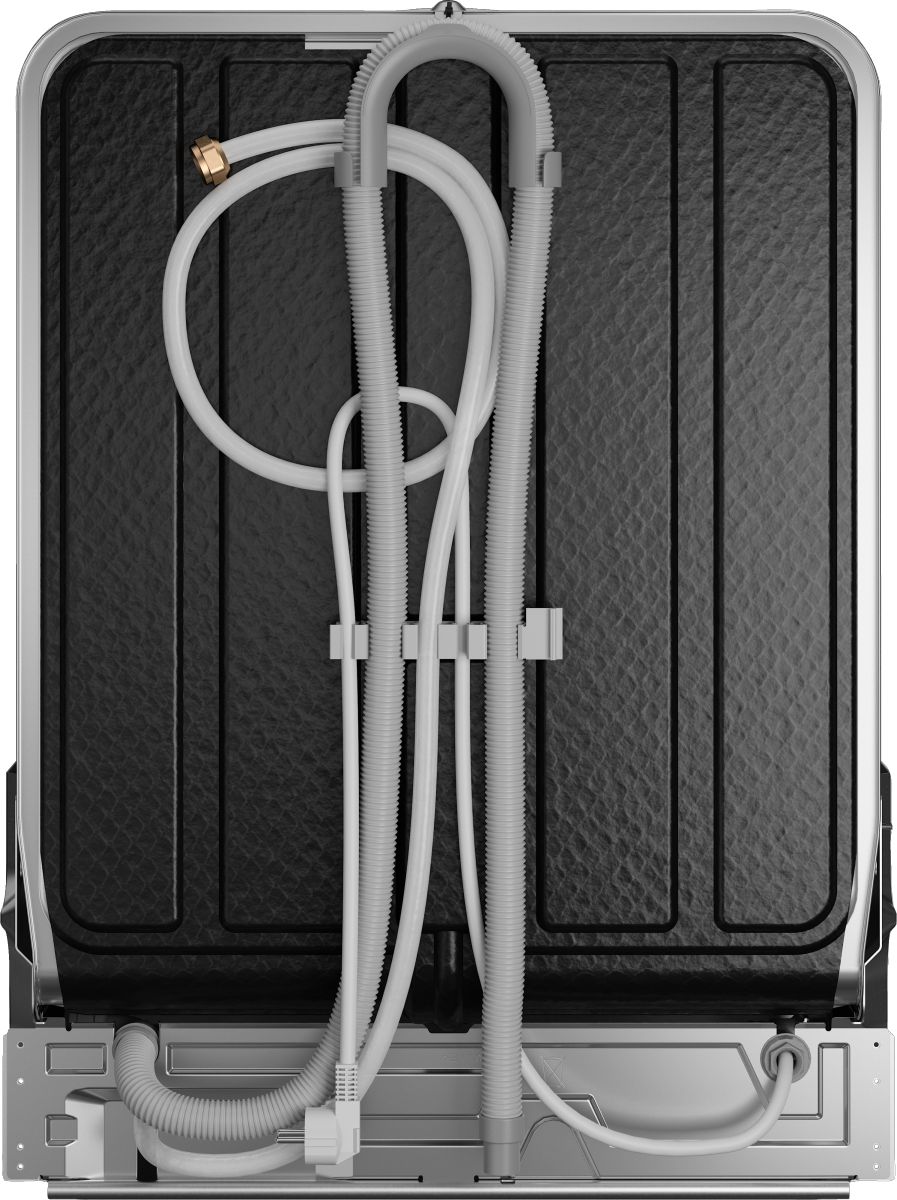

Length inlet hose: 163 cm
Length outlet hose: 200 cm

Logistic information

Packaging width: 640 mm
Packaging height: 890 mm
Packaging depth: 680 mm
Gross weight: 52 kg
Product code: 739524
EAN code: 3838782612831
Market: Domestic
Range: Style
