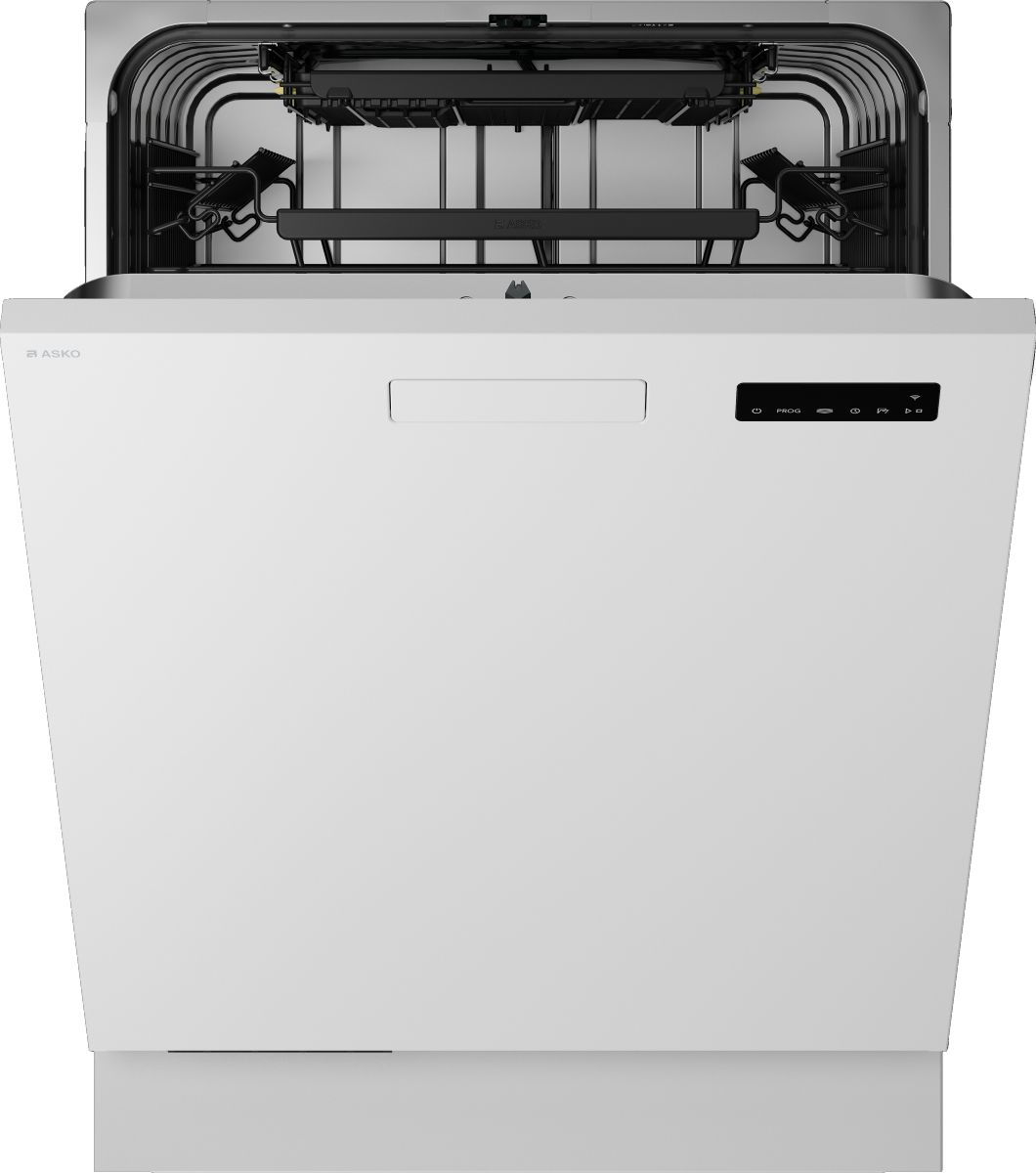

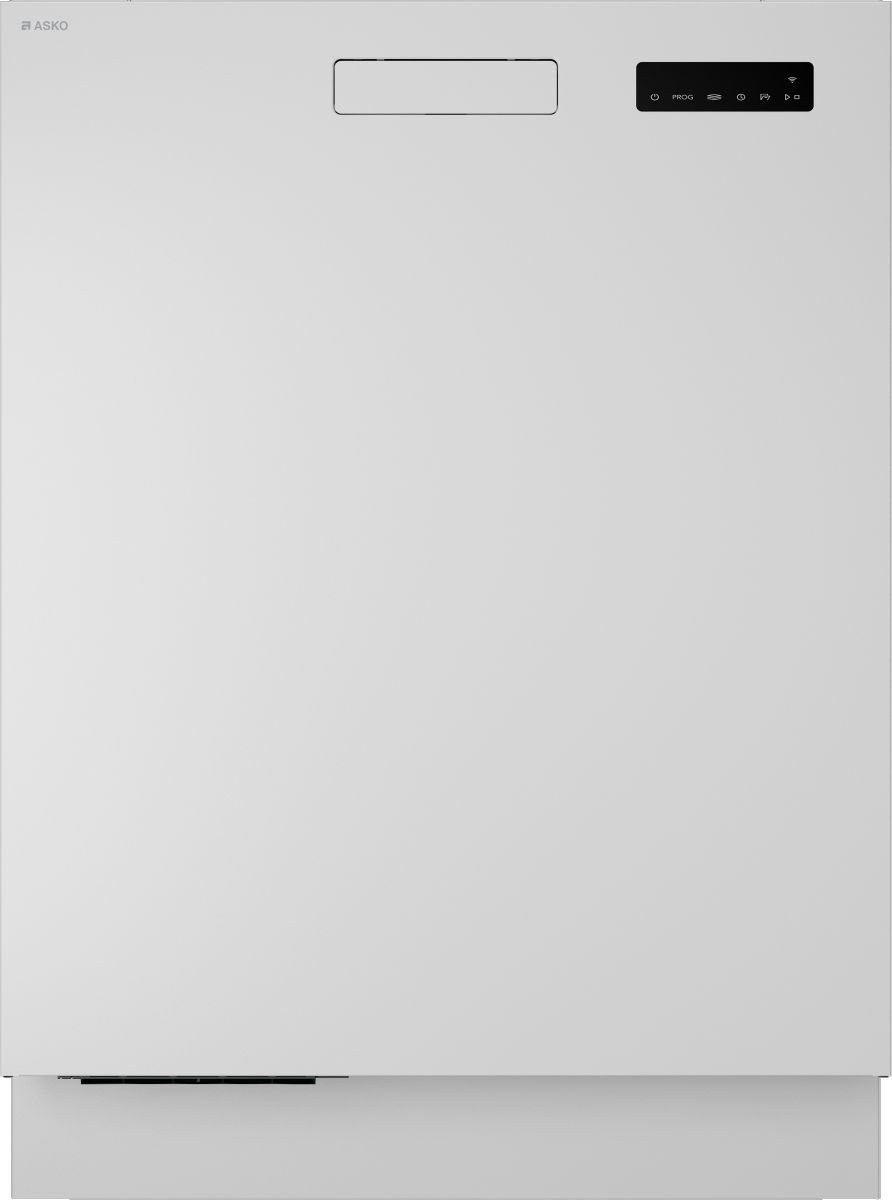

DBI344ID.W
DBI344ID.W DBI344ID.W DBI344ID.W DBI344ID.W

DBI344ID.W

Drying system: Turbo Combi Drying™
Product line: Classic
Installation: Built-in
Size: XL, 820 mm
Number of baskets: 3
Number of place settings (label): 14 place settings
Top tray: Easy height adjustment; Handle; Removable for comfortable emptying
Upper basket type: Premium - Basket wiring in steel, fixed pin rows and foldable wine shelves.
Lower basket type: Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket.
Cutlery basket: Removable cutlery basket for easy loading and unloading

Share

Twitter
Linkedin

Highlights

SCS - Super Cleaning System™
SCS - Super Cleaning System™
8 Steel™
8 Steel™
Turbo Combi Drying™
Turbo Combi Drying™
Aqua Safe™ system
Aqua Safe™ system
Flexiracks™
Flexiracks™
XL Dishwashers
XL Dishwashers
Top cutlery tray
Top cutlery tray
Instant Lift™
Instant Lift™
3 Level basket
3 Level basket
Telescopic rails
Telescopic rails
14 - Loading capacity
14 - Loading capacity
Knife holders
Knife holders
Focus points
Focus points
Adjustable power zones
Adjustable power zones
20 years
20 years
SCS - Super Cleaning System™
SCS - Super Cleaning System™

SCS - Super Cleaning System™

Our unique and improved Super Cleaning System (SCS) is an intelligent feature that will save you time, electricity, water and effort. With this patented cleaning system you don’t need to rinse your dishes before putting them into your dishwasher. SCS cleans the fine filter and all the interior surfaces after pre-wash, before running the main wash. This means that the wash starts with rinsed dishes, a clean machine, an empty filter and fresh, and clean water.
8 Steel™
8 Steel™

8 Steel™

No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
Turbo Combi Drying™
Turbo Combi Drying™

Turbo Combi Drying™

Turbo Combi Drying™ benefits from both the innovative Turbo Drying™ system and natural drying with dry indoor air. Our Turbo Drying™ system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.
Aqua Safe™ system
Aqua Safe™ system
Aqua Safe™ system

Aqua Safe™ system

Aqua Safe™, is an advanced water safety system encompassing both a sturdy construction like PEX hose and seam-welded stainless container as well as smart systems as anti-block drain pump, Aqua Detect sensor and stand-by water protection. Few sealing points outside the container Seem-welded container in stainless steel Waterproof external base Exterior Float Aqua Detect™ Sensor Stand by water protection PEX inlet hose Maximum time for water intake Light and sound alarm Anti-block drain pump Safety Inlet Valve
Aqua Safe™ system
Flexiracks™
Flexiracks™

Flexiracks™

ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.
XL Dishwashers
XL Dishwashers
XL Dishwashers

XL Dishwashers

An internal loading height of up to 59 cm means that there is plenty of room for even the largest and most awkward kitchen objects. There’s also plenty of room for tall wine glasses, large platters and more.

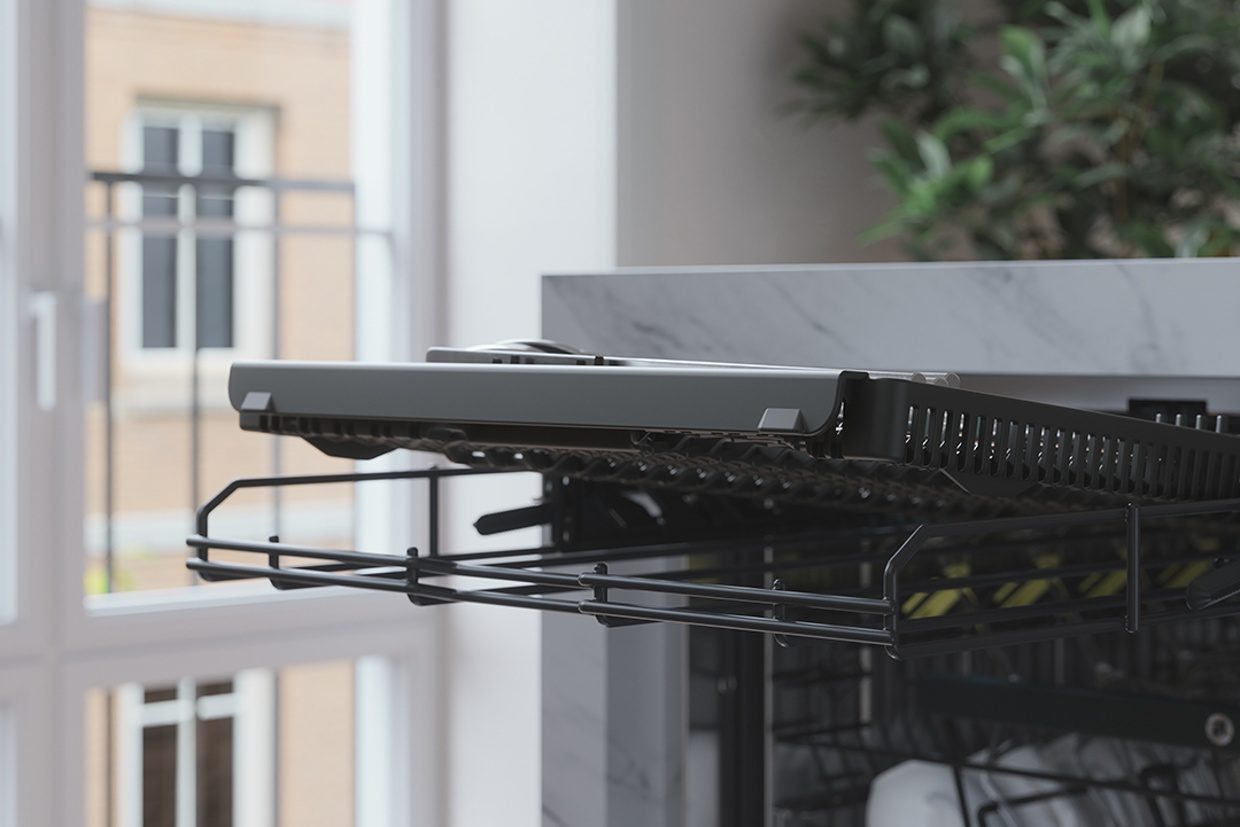

Top cutlery tray
Top cutlery tray
Top cutlery tray

Top cutlery tray

The top tray for cutlery and kitchen utensils is placed right under the roof of the dishwasher. It has its own dedicated spray arm and is easy to remove for easy loading and unloading. With the Instant Lift™ function you can easily adjust the height of the top cutlery tray.
Instant Lift™
Instant Lift™
Instant Lift™

Instant Lift™

Our InstantLift™ height adjustment system, allows for freeing up between 40 and 58 mm in the upper basket. A simple and flexible way to make room for it all.
3 Level basket
3 Level basket
3 Level basket

3 Level basket

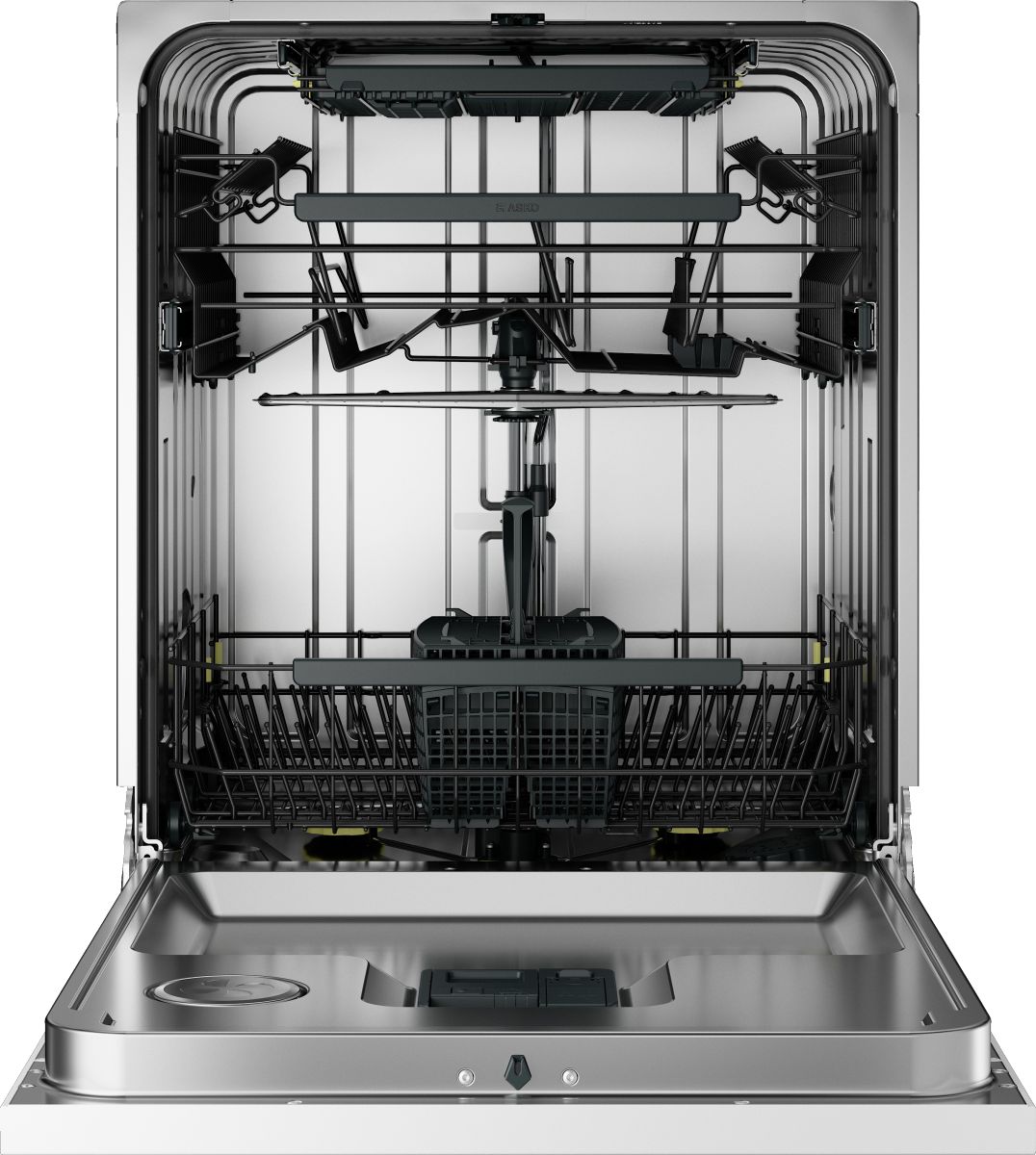

ASKO’s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery basket to meet your every need.
Telescopic rails
Telescopic rails
Telescopic rails

Telescopic rails

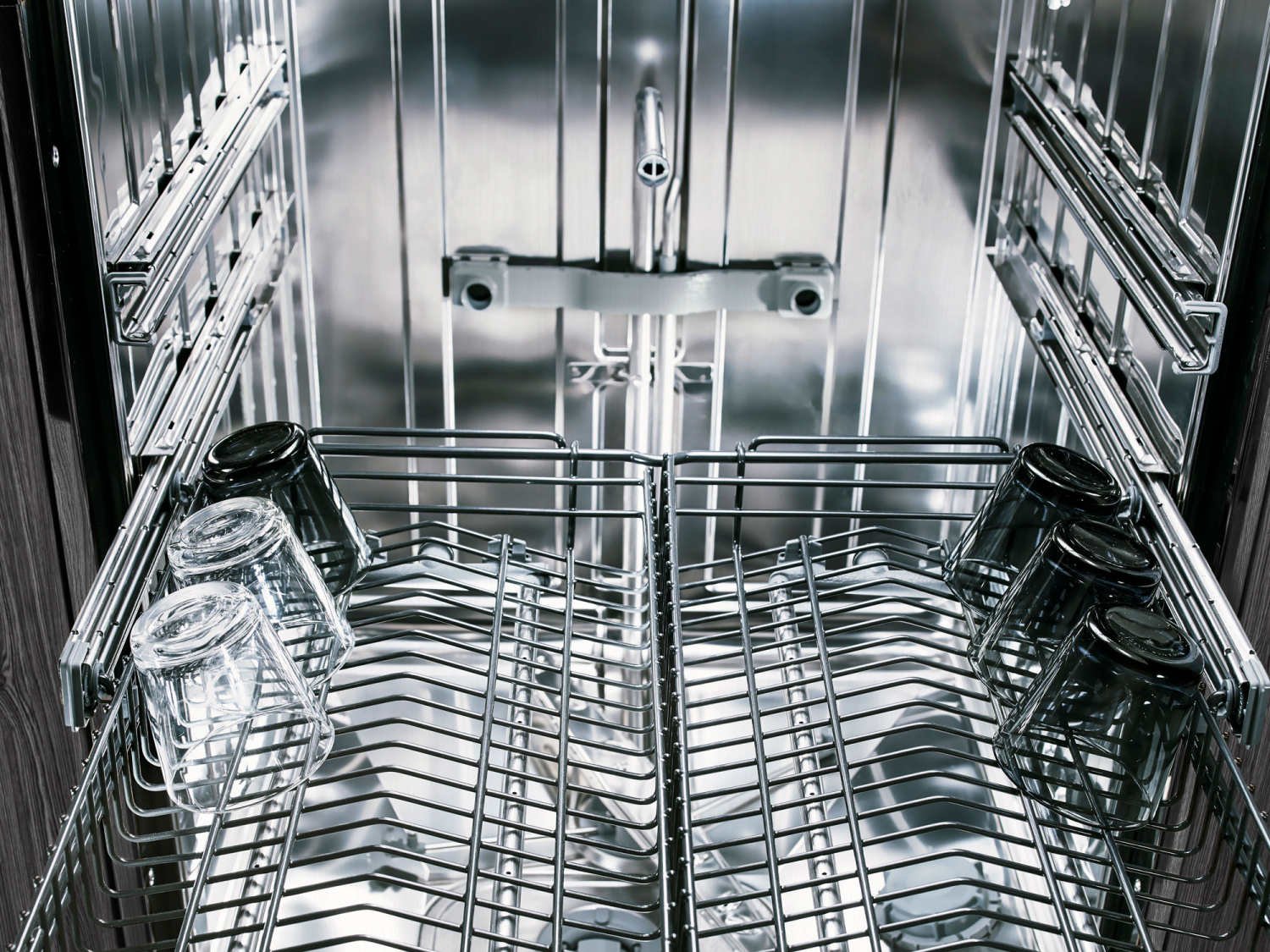

ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
Telescopic rails
14 - Loading capacity
14 - Loading capacity
14 - Loading capacity

14 - Loading capacity

Inspired by everyday life. Our goal is that our products should make your everyday life simpler. That is why we have worked so hard through the years to develop the market’s largest and most flexible basket systems. This time, we have been especially careful to first find out what people really put in their dishwashers. We then translated our newly acquired knowledge to a range of unique, innovative and practical basket solutions.
Knife holders
Knife holders
Knife holders

Knife holders

Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Focus points
Focus points
Focus points

Focus points

Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine’s many clever features. These are highlighted with a colour that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place – where it doesn’t compete for space or attention – instead, it makes the room.
Adjustable power zones
Adjustable power zones
Adjustable power zones

Adjustable power zones

To make an already powerful cleaning system even more powerful, we have created two adjustable “power zones” with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There’s also a “bridging function” where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don’t need them simply switch them off.
20 years
20 years
20 years

20 years

Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better – for our customers and for the planet. Designed to make a difference. And built to be enjoyed for the next 20 years.

Construction & Performance

Extra durable stainless steel container.
Aqua Detect™ - Instant recognition of any leakage in the motor compartment.
Stand-by water protecion - Leakage detection when machine is off.
Anti Block™ - Self cleaning drain pump.
8 Steel™ - Vital parts of the dishwasher made in stainless steel.
Hidden heater
No need to rinse the dishes thanks to Super Cleaning System™
Automatic water-softener for better washing performance
Number of spray arms: 3
Number of spray zones: 9
Turbo Combi Drying™
Automatic door opening
Cutlery Spray™ - Extra dishwashing power for the cutlery basket
Door handle type: Integrated soft closing handle

Use & flexibility

Number of place settings (label): 14 place settings
Number of baskets: 3
Top tray: Easy height adjustment; Handle; Removable for comfortable emptying
Upper basket type: Premium - Basket wiring in steel, fixed pin rows and foldable wine shelves.
Upper basket system: Switch wheels
Lower basket type: Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket.
Small distance between the basket threads - makes loading easy and prevents small items to fall through.
Removable cutlery basket for easy loading and unloading
Required inlet water pressure: 0,03-1 MPa

Interaction & Control

Type of display: LCD display
Ability to create own programmes: Memory programme
Number of programs: 9
Number of options: 5
Time remaining indicator: Front display
Wash end indication: Displayed with sound and light
Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off.
Available languages in control unit: CZ, DA, DE, EN, ES, EE, FI, FR, HR, IT, JP, LT, LV, NL, NO, PL, PT, RU, SK, SL, SV, UK

Programs

9 programmes: Quick; Intensive; Eco; Hygiene; Time program; Rinse & hold; Universal; Self cleaning; Anti odour
Delayed start: Possible to delay up to 24 hours
Speed mode - The program time is shortened. More energy is used.
Night mode - Lower noise level. The program time is extended.
Super Rinse™ - Two extra rinses.

Design & integration

From front adjustable rear foot
Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation
Min. niche width: 600 mm
Min. niche height: 820 mm
Depth (incl. wall spacing): 560 mm
Height setting: 53 mm
Possible adjustment of kick plate: 30 - 94/0 mm

Safety & Maintenance

Aqua Safe™ system - Multiple safety systems preventing water damages.
Kid Safe™ - Lockable controls
Indication of low level of rinse-aid: Notification in display
Salt refill indicator: Salt refill indicator

Technical data

Water connection: Size 3/4" - Can be connected to hot or cold water
Max. temperature of incoming water: 70 °C
Noise level: 42 dB(A)re 1 pW
Duration of label wash cycle: 195 min
Estimated annual energy consumption: 184 kWh
Energy consumption - normal program: 0,64 kWh
Estimated annual water consumption: 2576 l
Water consumption - label program: 9,2 l
Energy consumption in off mode: 0,49 W
Energy consumption in standby mode: 0,49 W
Energy class: A+++
Plug type: Euro
Connected load: 1900 W
Number of phases: 1
Fuse: 10 amp
Frequency: 50 Hz
Required inlet water pressure: 0,03-1 MPa
Net weight: 36 kg

Dimensions

Width: 596 mm
Height: 819 mm
Depth: 554 mm
Maximum product height: 872 mm
Length electrical cord: 1730 mm
Depth with door open: 1191 mm

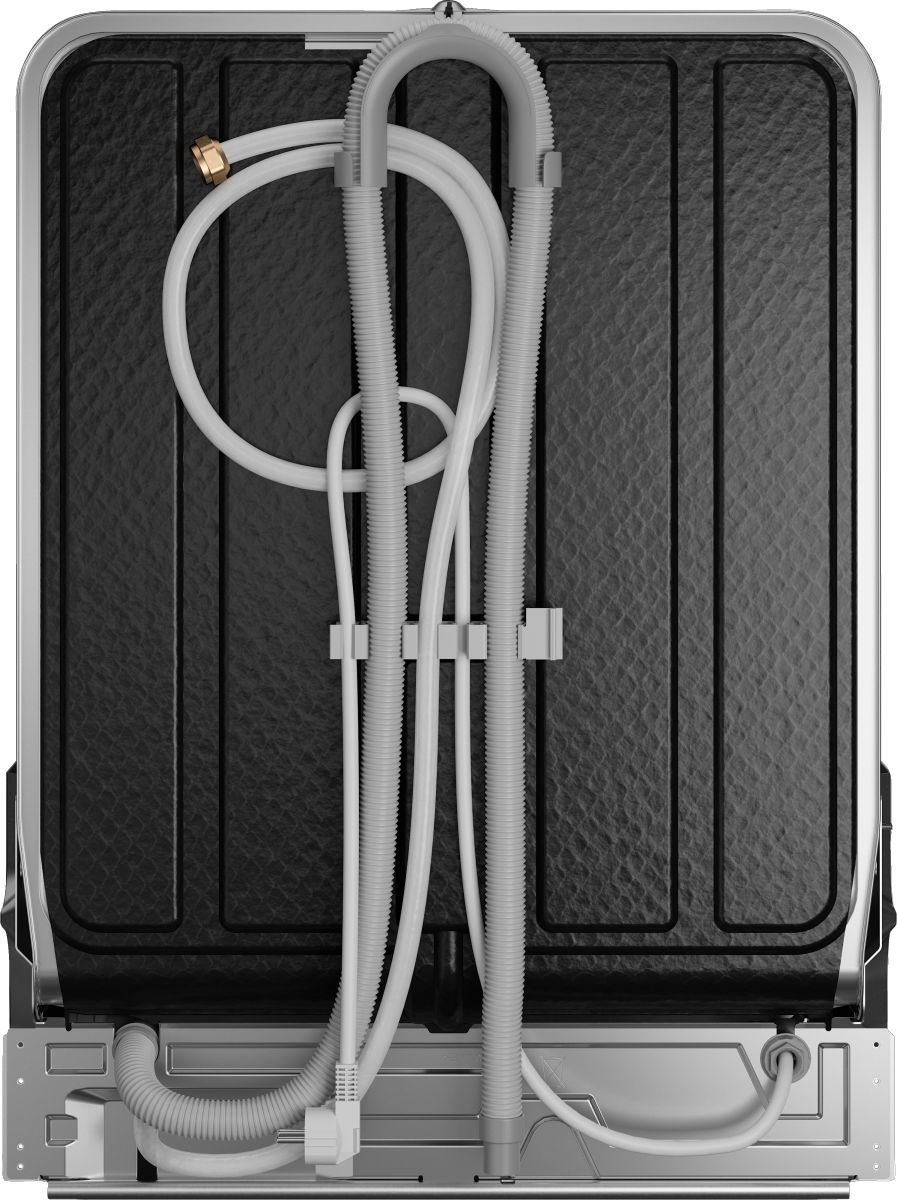

Length inlet hose: 163 cm
Length outlet hose: 200 cm

Logistic information

Packaging width: 640 mm
Packaging height: 890 mm
Packaging depth: 680 mm
Gross weight: 39,3 kg
Product code: 739400
EAN code: 3838782571756
Market: Domestic
